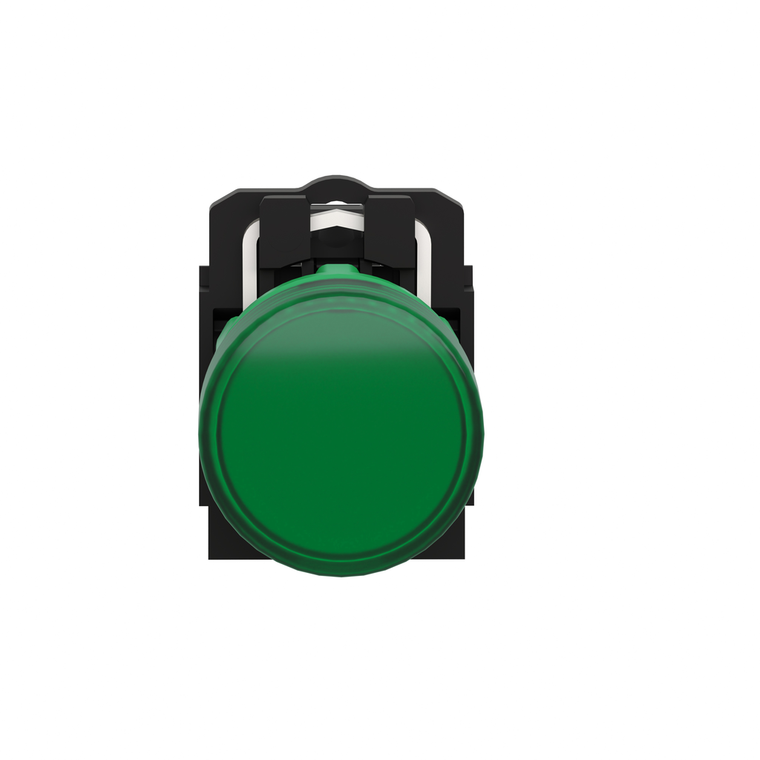

Schneider Electric XB5AVB3 Pilot Light, Complete, 24V, Green

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5AVB3 Pilot Light, Complete, 24V, Green

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AVB3

UPC:

3389110903775

MPN:

Condition:

New

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653

Height:

42 mm

Width:

30 mm

Signalling Type:

steady

Overvoltage Category:

class II IEC 60536

Environmental Disclosure:

ENVPEP1710010EN

Bezel Material:

dark grey plastic

Range Of Product:

Harmony XB5

Ambient Air Temperature For Storage:

-40-70 °C

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

China Rohs Regulation:

X

Warranty:

18 months

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Ik Degree Of Protection:

IK05 IEC 50102

Head Type:

standard

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Shock Resistance:

50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Net Weight:

0.038 kg

Standards:

UL 508 || IEC 60947-5-1 || IEC 60947-5-4 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || JIS C8201-1

Surge Withstand:

1 kV IEC 61000-4-5

Product Or Component Type:

pilot light

Shape Of Signaling Unit Head:

round

Protective Treatment:

TH

Bulb Base:

integral LED

Cap/Operator Or Lens Colour:

green

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Current Consumption:

18 mA

Device Short Name:

XB5

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Electromagnetic Compatibility:

electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Fixing Collar Material:

plastic

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Mercury Free:

Yes

Light Source Colour:

green

Product Certifications:

CSA || UL Listed

Device Presentation:

complete product

Compatibility Code:

XB5

Rohs Exemption Information:

Yes

Sale Per Indivisible Quantity:

1

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ambient Air Temperature For Operation:

-40-70 °C

Gcr Bridge:

XB5AVCUST03

Electromagnetic Emission:

class B IEC 55011

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Light Source:

universal LED

Depth:

54 mm

Operator Additional Information:

with plain lens

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Mounting Diameter:

22 mm

Sustainable Offer Status:

Green Premium product

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Circularity Profile:

ENVEOLI1710010EN

Service Life:

100000 h at rated voltage and 25 °C

Terminals Description Iso N°1:

(X1-X2)PL
