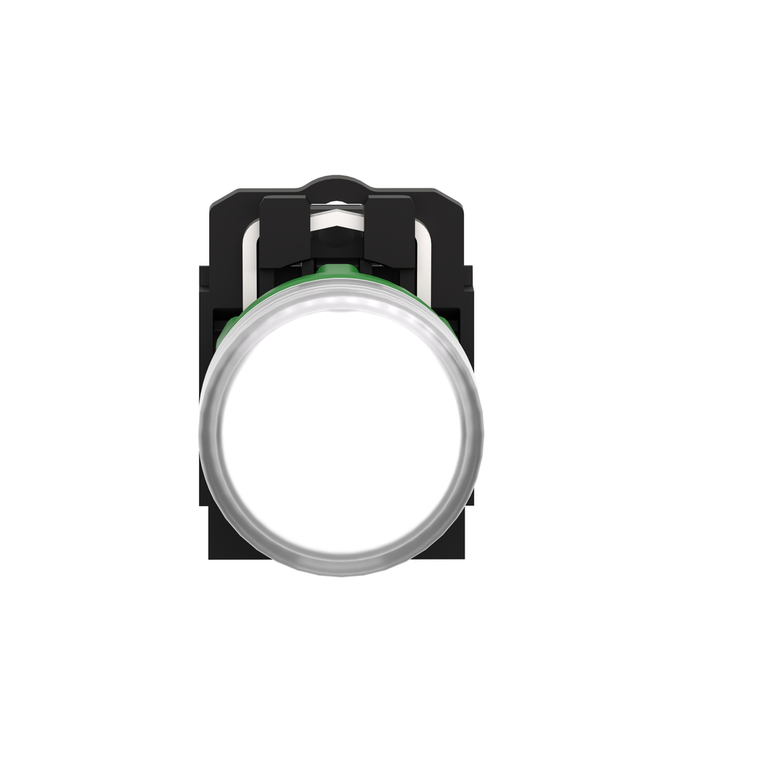

Schneider Electric XB5AVG1 Pilot Light, Complete, 110-120V, White

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5AVG1 Pilot Light, Complete, 110-120V, White

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AVG1

UPC:

3389110903805

MPN:

Condition:

New

Rohs Exemption Information:

Yes

Service Life:

100000 h at rated voltage and 25 °C

Bezel Material:

dark grey plastic

Light Source:

universal LED

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Terminals Description Iso N°1:

(X1-X2)PL

Ik Degree Of Protection:

IK05 IEC 50102

Standards:

JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-1

Protective Treatment:

TH

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Environmental Disclosure:

ENVPEP1710010EN

Operator Additional Information:

with plain lens

Bulb Base:

integral LED

Electromagnetic Emission:

class B IEC 55011

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Depth:

54 mm

Product Or Component Type:

pilot light

Overvoltage Category:

class II IEC 60536

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Surge Withstand:

1 kV IEC 61000-4-5

Ambient Air Temperature For Storage:

-40-70 °C

Shape Of Signaling Unit Head:

round

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Light Source Colour:

white

Cap/Operator Or Lens Colour:

white

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Sustainable Offer Status:

Green Premium product

Device Short Name:

XB5

Range Of Product:

Harmony XB5

Electromagnetic Compatibility:

electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con

Warranty:

18 months

Fixing Collar Material:

plastic

Sale Per Indivisible Quantity:

1

Head Type:

standard

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653

Circularity Profile:

ENVEOLI1710010EN

Net Weight:

0.038 kg

Resistance To Fast Transients:

2 kV IEC 61000-4-4

China Rohs Regulation:

X

Shock Resistance:

50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Compatibility Code:

XB5

Mounting Diameter:

22 mm

Gcr Bridge:

XB5AVCUST04

Height:

42 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Certifications:

CSA || UL Listed

Supply Voltage Limits:

100-132 V AC

Width:

30 mm

Ambient Air Temperature For Operation:

-40-70 °C

Current Consumption:

14 mA

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Signalling Type:

steady

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Mercury Free:

Yes

Device Presentation:

complete product
