Schneider Electric XB5AW33B5C0 Illuminated Pushbutton

(No reviews yet) Write a Review

Write a Review

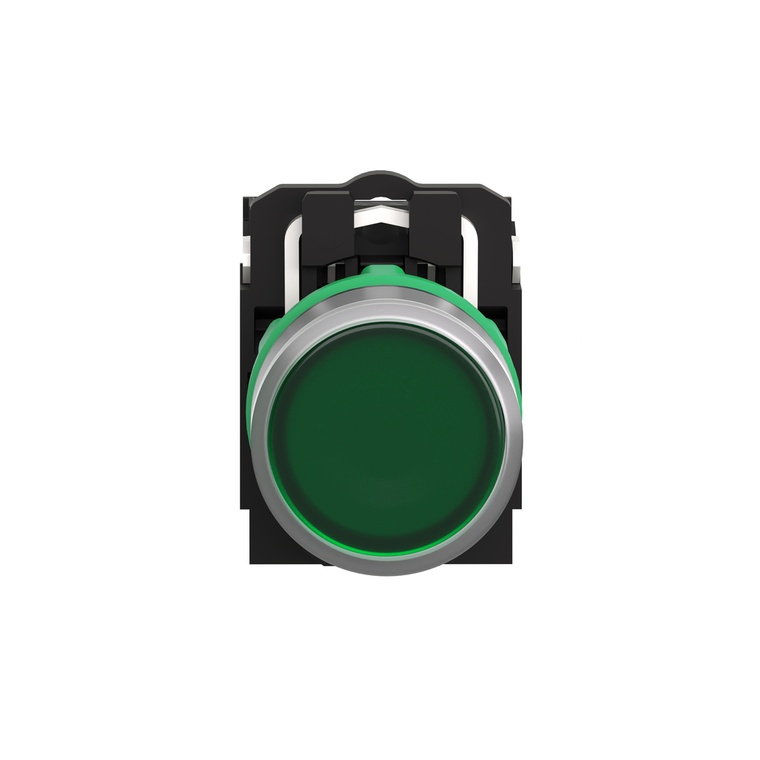

Schneider Electric XB5AW33B5C0 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AW33B5C0

UPC:

3606489759919

MPN:

Condition:

New

Overvoltage Category:

class II IEC 60536

Ambient Air Temperature For Storage:

-40-70 °C

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Net Weight:

0.056 kg

Type Of Operator:

spring return

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Shape Of Signaling Unit Head:

round

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

China Rohs Regulation:

X

Light Source:

universal LED

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Operator Profile:

green flush, unmarked

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Mechanical Durability:

10000000 cycles

Head Type:

standard

Sale Per Indivisible Quantity:

1

Contacts Usage:

standard contacts

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Fixing Collar Material:

plastic

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Signalling Type:

steady

Range Of Product:

Harmony XB5

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Bulb Base:

integral LED

Electromagnetic Emission:

class B IEC 55011

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Depth:

57 mm

Contacts Material:

silver alloy (Ag/Ni)

Service Life:

100000 h at rated voltage and 25 °C

Mounting Diameter:

22 mm

Operator Additional Information:

with plain lens

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Ambient Air Temperature For Operation:

-40-70 °C

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Rohs Exemption Information:

Yes

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Ik Degree Of Protection:

IK05 IEC 50102

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Product Or Component Type:

illuminated push-button

Height:

42 mm

Standards:

IEC 60947-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || IEC 60947-5-4 || JIS C8201-1

Contacts Type And Composition:

1 NO + 1 NC

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Operating Force:

3.5 N NC changing electrical state || 3.8 N

Device Short Name:

XB5

Width:

30 mm

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Product Certifications:

UL Listed || GL || CSA || LROS (Lloyds register of shipping) || DNV || BV

Bezel Material:

plastic colour plated grey

Contact Operation:

slow-break

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Cap/Operator Or Lens Colour:

green

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Positive Opening:

with IEC 60947-5-1 appendix K

Resistance To Fast Transients:

2 kV IEC 61000-4-4

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Current Consumption:

18 mA

Protective Treatment:

TH

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Device Presentation:

complete product

Mercury Free:

Yes

Surge Withstand:

1 kV IEC 61000-4-5
