Schneider Electric XB5AW3465 Illuminated Pushbutton

(No reviews yet) Write a Review

Write a Review

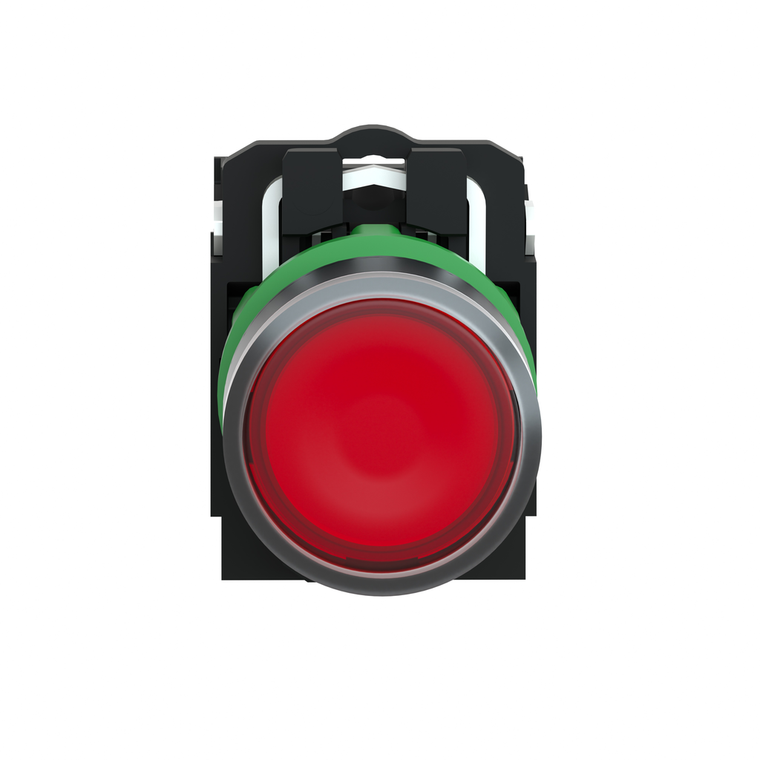

Schneider Electric XB5AW3465 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AW3465

UPC:

3389110904178

MPN:

Condition:

New

Ambient Air Temperature For Storage:

-40-70 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Certifications:

UL Listed || CSA || BV || DNV || LROS (Lloyds register of shipping) || GL

China Rohs Regulation:

X

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Terminals Description Iso N°1:

(13-14)NO || (21-22)NC

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Device Presentation:

complete product

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Operator Profile:

red flush, unmarked

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Contact Operation:

slow-break

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Rohs Exemption Information:

Yes

Depth:

54 mm

Ip Degree Of Protection:

IP66 IEC 60529 || IP69 || IP69K || IP67

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Range Of Product:

Harmony XB5

Mounting Diameter:

22 mm

Contacts Usage:

standard contacts

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Mechanical Durability:

10000000 cycles

Sustainable Offer Status:

Green Premium product

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Operating Force:

3.5 N NC changing electrical state || 3.8 N

Contacts Material:

silver alloy (Ag/Ni)

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Environmental Disclosure:

ENVPEP1710010EN

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Width:

30 mm

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Fixing Collar Material:

plastic

Device Short Name:

XB5

Signalling Type:

steady

Type Of Operator:

spring return

Positive Opening:

with IEC 60947-5-1 appendix K

Light Block Supply:

direct <2.4 W

Cap/Operator Or Lens Colour:

red

Contacts Type And Composition:

1 NO + 1 NC

Net Weight:

0.057 kg

Protective Treatment:

TH

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Standards:

IEC 60947-5-4 || IEC 60947-1 || CSA C22.2 No 14 || IEC 60947-5-1 || JIS C8201-5-1 || UL 508 || JIS C8201-1

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Ik Degree Of Protection:

IK05 IEC 50102

Product Or Component Type:

illuminated push-button

Operator Additional Information:

with plain lens

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Shape Of Signaling Unit Head:

round

Overvoltage Category:

class II IEC 60536

Warranty:

18 months

Head Type:

standard

Light Source:

bulb not included

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Bezel Material:

dark grey plastic

Bulb Base:

BA 9s

Sale Per Indivisible Quantity:

1

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)

Height:

42 mm

Circularity Profile:

ENVEOLI1710010EN

Mercury Free:

Yes

Ambient Air Temperature For Operation:

-40-55 °C

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

[Us] Rated Supply Voltage:

<= 250 V
