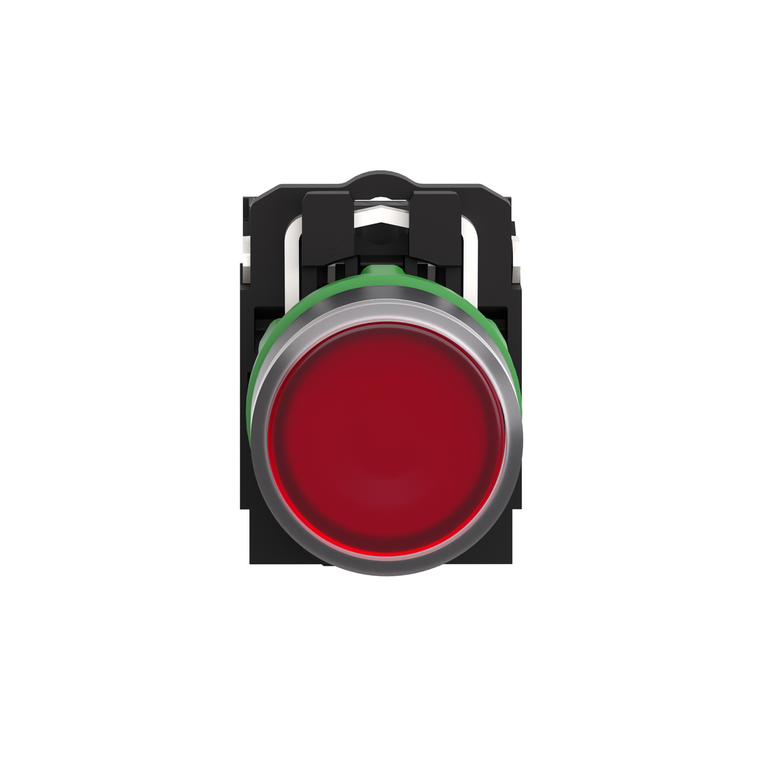

Schneider Electric XB5AW34B5 Illuminated Pushbutton

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5AW34B5 Illuminated Pushbutton

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5AW34B5

UPC:

3389110904123

MPN:

Condition:

New

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Type Of Operator:

spring return

Mercury Free:

Yes

Operator Additional Information:

with plain lens

Sustainable Offer Status:

Green Premium product

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Bulb Base:

integral LED

Environmental Disclosure:

ENVPEP1710010EN

Contacts Type And Composition:

1 NO + 1 NC

Cap/Operator Or Lens Colour:

red

Operator Profile:

red flush, unmarked

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Surge Withstand:

1 kV IEC 61000-4-5

Circularity Profile:

ENVEOLI1710010EN

Light Source:

universal LED

Rohs Exemption Information:

Yes

Bezel Material:

dark grey plastic

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Contacts Material:

silver alloy (Ag/Ni)

Height:

42 mm

Shape Of Signaling Unit Head:

round

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Service Life:

100000 h at rated voltage and 25 °C

Contacts Usage:

standard contacts

Standards:

UL 508 || IEC 60947-5-1 || IEC 60947-5-4 || IEC 60947-1 || CSA C22.2 No 14 || JIS C8201-5-1 || JIS C8201-1

Mounting Diameter:

22 mm

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Mechanical Durability:

10000000 cycles

Fixing Collar Material:

plastic

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Range Of Product:

Harmony XB5

Product Or Component Type:

illuminated push-button

Ambient Air Temperature For Operation:

-40-70 °C

Signalling Type:

steady

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Device Short Name:

XB5

Sale Per Indivisible Quantity:

1

Overvoltage Category:

class II IEC 60536

Ip Degree Of Protection:

IP66 IEC 60529 || IP69 || IP69K || IP67

Warranty:

18 months

Depth:

57 mm

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Width:

30 mm

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Net Weight:

0.056 kg

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Product Certifications:

LROS (Lloyds register of shipping) || UL Listed || CSA || BV || GL || DNV

China Rohs Regulation:

X

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Head Type:

standard

Positive Opening:

with IEC 60947-5-1 appendix K

Supply Voltage Limits:

19.2-30 V DC || 21.6-26.4 V AC

Device Presentation:

complete product

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Operating Force:

3.5 N NC changing electrical state || 3.8 N

Electromagnetic Emission:

class B IEC 55011

Ambient Air Temperature For Storage:

-40-70 °C

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Ik Degree Of Protection:

IK05 IEC 50102

Electrical Reliability:

λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Contact Operation:

slow-break

Current Consumption:

18 mA

Protective Treatment:

TH

Operating Travel:

1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
