Schneider Electric XB5AW73731M5 Complete Plastic Double Headed Pushbutto

Schneider Electric XB5AW73731M5 Complete Plastic Double Headed Pushbutto

Schneider Electric
SKU:
XB5AW73731M5
|
UPC:
3389119043564
$123.50
(No reviews yet) Write a Review
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

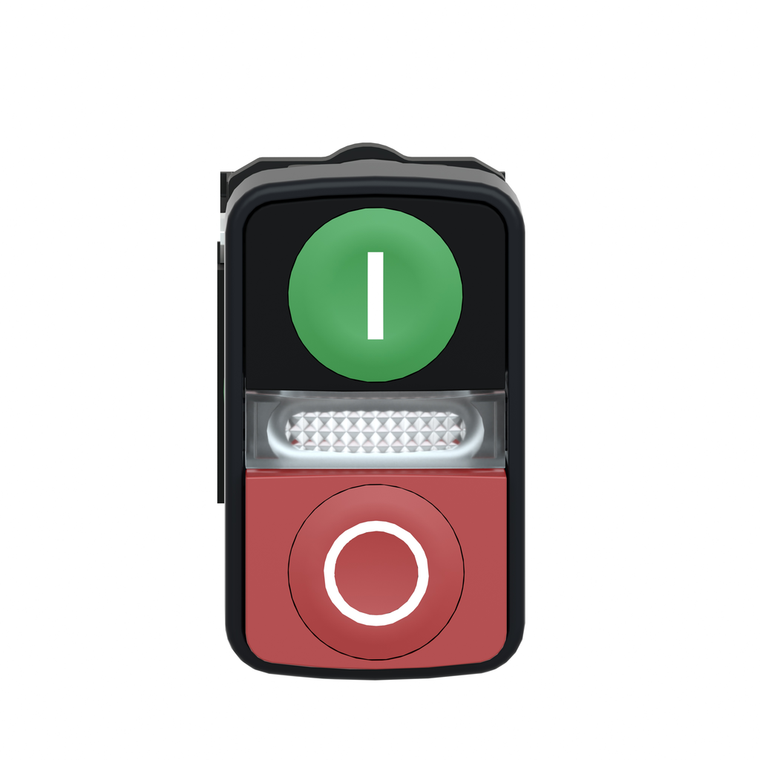

This Harmony XB5, double-headed modular push button has 1 green, 1 red button and 1 central white pilot light, operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is marked with "I" and "O" symbols. This double-head button provides a complete 2 button interface to your machines with a single panel cut-out. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66/IP67/IP69/IP69K and IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Additional Information
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Ambient Air Temperature For Operation:
-40-70 °C
Operating Travel:
1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
Width:
30 mm
Light Source Colour:
white
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Important Message:
A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks
Overvoltage Category:
class II IEC 61140
Operating Force:
3.5 N NC changing electrical state || 3.8 N NO changing electrical state
Environmental Disclosure:
ENVPEP1710010EN
Contacts Material:
silver alloy (Ag/Ni)
Sustainable Offer Status:
Green Premium product
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 EN/IEC 60947-5-1 || 6 A 120 V, AC-15, A600 EN/IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 EN/IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 EN/IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 EN
Ip Degree Of Protection:
IP66 IEC 60529 || IP69 IEC 60529 || IP69K
Colour Of Marking:
white marking when green, red or black caps || black marking when white caps
Mounting Diameter:
22 mm
Operator Profile:
green flush, I white) || red projecting, O white)
Head Type:
standard
Product Or Component Type:
illuminated double-headed push-button
Range Of Product:
Harmony XB5
Device Short Name:
XB5
Current Consumption:
14 mA
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Ambient Air Temperature For Storage:
-40-70 °C
Mechanical Durability:
1000000 cycles
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
[Ith] Conventional Free Air Thermal Current:
10 A EN/IEC 60947-5-1
Short-Circuit Protection:
10 A cartridge fuse gG EN/IEC 60947-5-1
Contact Operation:
slow-break
China Rohs Regulation:
X
[Ui] Rated Insulation Voltage:
600 V 3)EN 60947-1
Light Source:
protected LED
Contacts Type And Composition:
1 NO + 1 NC
Signalling Type:
steady
Shape Of Screw Head:
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Ik Degree Of Protection:
IK05 IEC 50102
Resistance To Electrostatic Discharge:
6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
Bezel Material:
dark grey plastic
Supply Voltage Limits:
195-264 V AC
Shape Of Signaling Unit Head:
rectangular
[Uimp] Rated Impulse Withstand Voltage:
6 kV EN 60947-1
Standards:
JIS C8201-5-1 || UL 508 || EN/IEC 60947-5-4 || EN/IEC 60947-1 || EN/IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1
Height:
50 mm
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA in clean environment EN/IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment EN/IEC 60947-5-4
Depth:
59 mm
Contacts Usage:
standard contacts
Surge Withstand:
1 kV IEC 61000-4-5
Fixing Collar Material:
plastic
Service Life:
100000 year(s) at rated voltage and 25 °C
Mercury Free:
Yes
Warranty:
18 months
Rohs Exemption Information:
Yes
Protective Treatment:
TH
Bulb Base:
integral LED
Product Certifications:
CSA || BV || LROS (Lloyds register of shipping) || GL || UL Listed || DNV
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles
Positive Opening:
with EN/IEC 60947-5-1 appendix K
Circularity Profile:
ENVEOLI1710010EN
Device Presentation:
complete product
Electromagnetic Emission:
class B IEC 55011
Terminals Description Iso N°1:
(13-14)NO || (11-12)NC
Net Weight:
0.066 kg
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Tightening Torque:
0.8-1.2 N.m EN 60947-1
Resistance To Electromagnetic Fields:
10 V/m IEC 61000-4-3
Resistance To Fast Transients:
2 kV IEC 61000-4-4
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end EN/IEC 60947-1 || spring terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || spring terminals, >= 1 x 0.22 mm²
Type Of Operator:
spring return
[Us] Rated Supply Voltage:
230...240 V AC 50/60 Hz
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Catalog:
View
Datasheet:
View
