Schneider Electric XB5FA4322 Flush Red Flush Cap Pb Wh Mark O 1Nc

Schneider Electric XB5FA4322 Flush Red Flush Cap Pb Wh Mark O 1Nc

Schneider Electric
SKU:
XB5FA4322
|
UPC:
3.60648E+12
$45.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

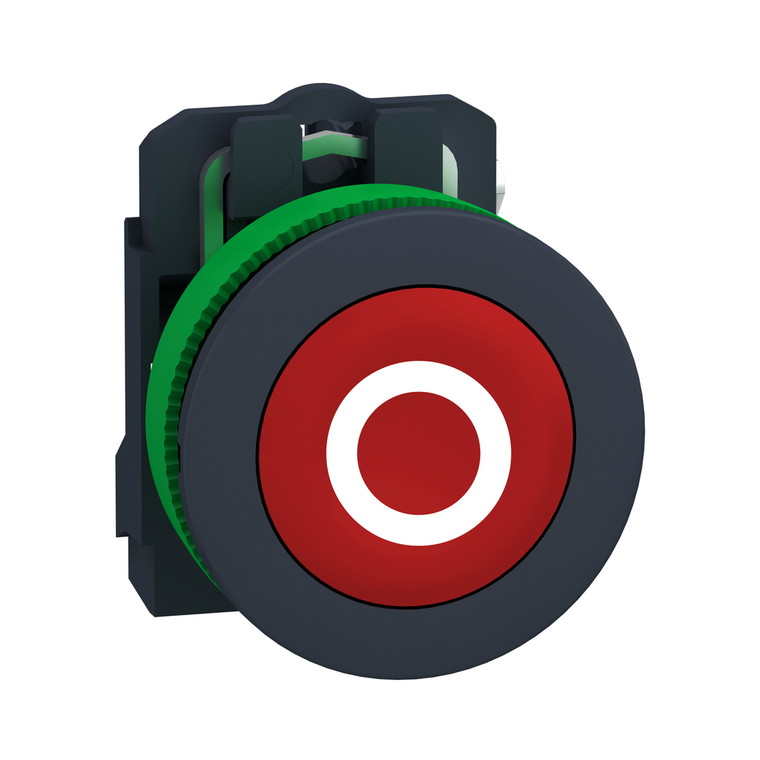

This flush mounted pushbutton is a part of the Harmony XB5 platic range and is a complete product. The mounting diameter is 30.5 mm. It has a "O" marking in white. Customized marking option is also available through web customization tool in Schneider Electric website. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. The contact type is 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is flush push. The shape of the head is round and red. The bezel and the fixing collar is plastic. The weight of this pushbutton is 37 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.
Additional Information
Toxic Heavy Metal Free:
Yes
Operator Profile:
red flush, O white)
Customizable:
no
Mercury Free:
Yes
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Overvoltage Category:
class II IEC 60536
Type Of Operator:
spring return
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Ambient Air Temperature For Storage:
-40-70 °C
Contacts Type And Composition:
1 NC
Environmental Disclosure:
ENVPEP1710010EN
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Contacts Usage:
standard contacts
Operating Travel:
1.5 mm NC changing electrical state) || 4.3 mm total travel)
Fixing Collar Material:
plastic
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
Gcr Bridge:
XB5FACUST01
Contacts Material:
silver alloy (Ag/Ni)
Sale Per Indivisible Quantity:
1
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Vibration Resistance:
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Product Certifications:
UL Listed || CSA || CCC || EAC
Device Presentation:
complete product
Circularity Profile:
ENVEOLI1710010EN
Bezel Material:
plastic || dark grey plastic
Reach Free Of Svhc:
Yes
Electrical Durability:
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2
Height:
42 mm
Width:
36.6 mm
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Product Or Component Type:
push-button
Protective Treatment:
TH
Mechanical Durability:
10000000 cycles
Compatibility Code:
XB5
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
China Rohs Regulation:
X
Range Of Product:
Harmony XB5
Customizable:
1
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Rohs Exemption Information:
Yes
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Mounting Diameter:
30.5 mm
Device Short Name:
XB5F
Ambient Air Temperature For Operation:
-40-70 °C
Sustainable Offer Status:
Green Premium product
Head Type:
built-in-flush
Depth:
55 mm
Product Compatibility:
ZBYF2101 || ZBYF4101 || ZBYF6101 || ZBYF6102 || ZBZF32 || ZBZF33 || ZB4FBZ007
Shape Of Signaling Unit Head:
round
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Operating Force:
3.5 N NC changing electrical state
Ik Degree Of Protection:
IK06 IEC 50102
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Contact Operation:
slow-break
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Positive Opening:
with IEC 60947-5-1 appendix K
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Standards:
CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Terminals Description Iso N°1:
(21-22)NC
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Datasheet:
View
