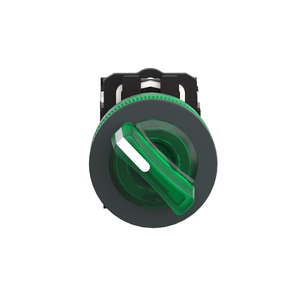

Schneider Electric XB5FK123B5C0 Flush Gr. Iss 2 Pos Stay Put 24 1No 1Nc

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB5FK123B5C0 Flush Gr. Iss 2 Pos Stay Put 24 1No 1Nc

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FK123B5C0

UPC:

3606489760717

MPN:

Condition:

New

Ambient Air Temperature For Operation:

-40-70 °C

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Width:

36.6 mm

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Device Presentation:

complete product

Standards:

IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Protective Treatment:

TH

Type Of Operator:

stay put handle || stay put

Light Source:

universal LED

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Electrical Shock Protection Class:

class II IEC 60536

Bezel Material:

plastic colour plated grey

Device Short Name:

XB5F

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Sale Per Indivisible Quantity:

1

Shape Of Signaling Unit Head:

round

Rohs Exemption Information:

Yes

Product Or Component Type:

illuminated selector switch

Contacts Usage:

standard contacts

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Bulb Base:

integral LED

Range Of Product:

Harmony XB5

Product Certifications:

UL Listed || CSA

Mounting Diameter:

30.5 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Height:

42 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ik Degree Of Protection:

IK03 IEC 50102

Contacts Type And Composition:

1 NO + 1 NC

Mechanical Durability:

1000000 cycles

Supply Voltage Limits:

21.6-26.4 V AC

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Contacts Material:

silver alloy (Ag/Ni)

China Rohs Regulation:

X

Ambient Air Temperature For Storage:

-40-70 °C

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Depth:

71 mm

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Positive Opening:

with NC contact IEC 60947-5-1 appendix K

Operator Profile:

green standard handle, unmarked || green handle, unmarked

Head Type:

built-in-flush

Contact Operation:

slow-break

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Operator Position Information:

2 positions 90°

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Important Message:

Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Mercury Free:

Yes

Datasheet:

View
