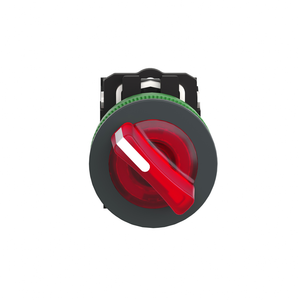

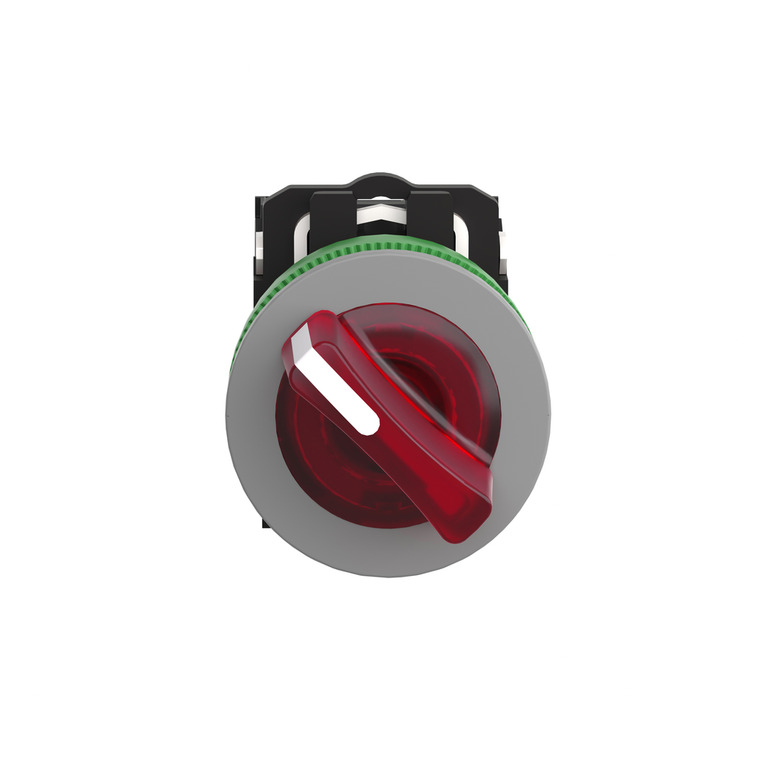

Schneider Electric XB5FK124B5C0 Flush Red Iss 2 Pos Stay Put 24 1No 1Nc

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FK124B5C0

UPC:

3606489760779

MPN:

Condition:

New

Light Source:

universal LED

Mercury Free:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Standards:

IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Device Short Name:

XB5F

Device Presentation:

complete product

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Mounting Diameter:

30.5 mm

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Contacts Material:

silver alloy (Ag/Ni)

Width:

36.6 mm

Operator Profile:

red standard handle, unmarked || red handle, unmarked

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Ambient Air Temperature For Operation:

-40-70 °C

Product Or Component Type:

illuminated selector switch

Important Message:

A change in appearance may be noted on the product but does not affect its use in terms of function and safety. This makes it compatible with our Universal LED blocks

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Bezel Material:

plastic colour plated grey

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Certifications:

UL Listed || CSA

Ik Degree Of Protection:

IK03 IEC 50102

Protective Treatment:

TH

Operator Position Information:

2 positions 90°

Sale Per Indivisible Quantity:

1

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Ip Degree Of Protection:

IP66 IEC 60529 || IP67

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Contacts Usage:

standard contacts

China Rohs Regulation:

X

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Positive Opening:

with NC contact IEC 60947-5-1 appendix K

Electrical Shock Protection Class:

class II IEC 60536

Bulb Base:

integral LED

Contact Operation:

slow-break

Mechanical Durability:

1000000 cycles

Range Of Product:

Harmony XB5

Rohs Exemption Information:

Yes

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Shape Of Signaling Unit Head:

round

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Supply Voltage Limits:

21.6-26.4 V AC

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Ambient Air Temperature For Storage:

-40-70 °C

Contacts Type And Composition:

1 NO + 1 NC

Type Of Operator:

stay put || stay put handle

Head Type:

built-in-flush

Depth:

71 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Height:

42 mm
