Schneider Electric

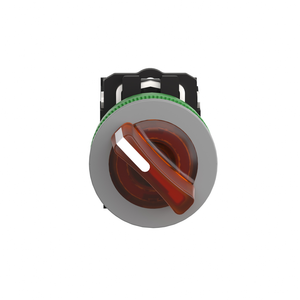

Schneider Electric XB5FK125B5 Flush Or. Iss 2 Pos Stay Put 24 1No 1Nc

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB5FK125B5 Flush Or. Iss 2 Pos Stay Put 24 1No 1Nc

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FK125B5

UPC:

3606481360731

MPN:

Condition:

New

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Head Type:

built-in-flush

Contacts Usage:

standard contacts

Shape Of Signaling Unit Head:

round

Sustainable Offer Status:

Green Premium product

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Warranty:

18 months

Mounting Diameter:

30.5 mm

Contacts Material:

silver alloy (Ag/Ni)

Device Short Name:

XB5F

Product Or Component Type:

illuminated selector switch

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Device Presentation:

complete product

Type Of Operator:

stay put

Important Message:

Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Width:

36.6 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Contact Operation:

slow-break

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Product Certifications:

UL Listed || CSA

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Supply Voltage Limits:

19.2-30 V DC

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Protective Treatment:

TH

Ambient Air Temperature For Operation:

-40-70 °C

Contacts Type And Composition:

1 NO + 1 NC

Circularity Profile:

ENVEOLI1710010EN

Rohs Exemption Information:

Yes

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Operator Position Information:

2 positions 90°

Ik Degree Of Protection:

IK03 IEC 50102

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Positive Opening:

with NC contact IEC 60947-5-1 appendix K

[Us] Rated Supply Voltage:

24 V AC/DC 50/60 Hz

Light Source:

universal LED

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Ambient Air Temperature For Storage:

-40-70 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Range Of Product:

Harmony XB5

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

China Rohs Regulation:

X

Operator Profile:

orange standard handle, unmarked

Standards:

IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

Depth:

71 mm

Sale Per Indivisible Quantity:

1

Mechanical Durability:

1000000 cycles

Bulb Base:

integral LED

Environmental Disclosure:

ENVPEP1710010EN

Height:

42 mm

Electrical Shock Protection Class:

class II IEC 60536

Mercury Free:

Yes

Bezel Material:

dark grey plastic

Datasheet:

View
