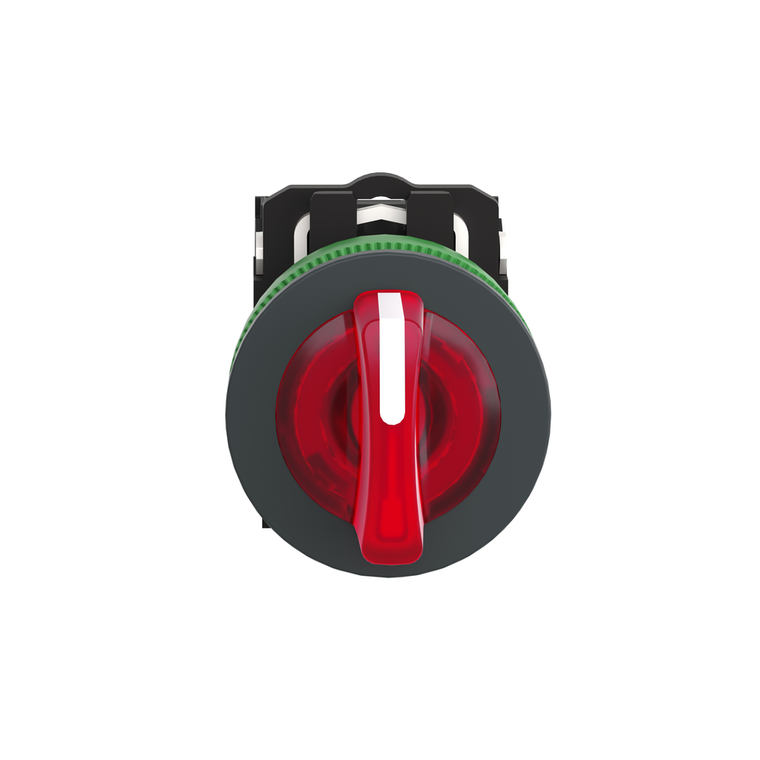

Schneider Electric XB5FK134G5 Flush Red Ill Ss 3 Pos Stay Put 1No 1Nc

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5FK134G5 Flush Red Ill Ss 3 Pos Stay Put 1No 1Nc

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FK134G5

UPC:

3606481361745

MPN:

Condition:

New

Short-Circuit Protection:

10 A cartridge fuse gG IEC 60947-5-1

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Shape Of Screw Head:

cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm

Head Type:

built-in-flush

Circularity Profile:

ENVEOLI1710010EN

Depth:

71 mm

Contacts Usage:

standard contacts

Electrical Durability:

1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Supply Voltage Limits:

94-132 V AC

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Ik Degree Of Protection:

IK03 IEC 50102

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1

Device Presentation:

complete product

Standards:

IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1

Rohs Exemption Information:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Mercury Free:

Yes

Operator Position Information:

3 positions +/- 45°

Ambient Air Temperature For Operation:

-40-70 °C

Sustainable Offer Status:

Green Premium product

Light Source:

universal LED

Electrical Shock Protection Class:

class II IEC 60536

Electrical Reliability:

λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

[Ie] Rated Operational Current:

3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1

Contact Operation:

slow-break

Operator Profile:

red standard handle, unmarked

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 || IP69 || IP69K

[Ith] Conventional Free Air Thermal Current:

10 A IEC 60947-5-1

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Positive Opening:

with NC contact IEC 60947-5-1 appendix K

Type Of Operator:

stay put

China Rohs Regulation:

X

Contacts Type And Composition:

1 NO + 1 NC

Ambient Air Temperature For Storage:

-40-70 °C

Bezel Material:

dark grey plastic

Width:

36.6 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Bulb Base:

integral LED

Mechanical Durability:

500000 cycles

[Uimp] Rated Impulse Withstand Voltage:

6 kV IEC 60947-1

Product Or Component Type:

illuminated selector switch

[Us] Rated Supply Voltage:

110...120 V AC 50/60 Hz

Vibration Resistance:

5 gn 2-500 Hz)IEC 60068-2-6

Mounting Diameter:

30.5 mm

[Ui] Rated Insulation Voltage:

600 V 3)IEC 60947-1

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Shape Of Signaling Unit Head:

round

Device Short Name:

XB5F

Important Message:

Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block

Contacts Material:

silver alloy (Ag/Ni)

Height:

42 mm

Warranty:

18 months

Tightening Torque:

0.8-1.2 N.m IEC 60947-1

Sale Per Indivisible Quantity:

1

Range Of Product:

Harmony XB5

Environmental Disclosure:

ENVPEP1710010EN

Product Certifications:

UL Listed || CSA

Protective Treatment:

TH
