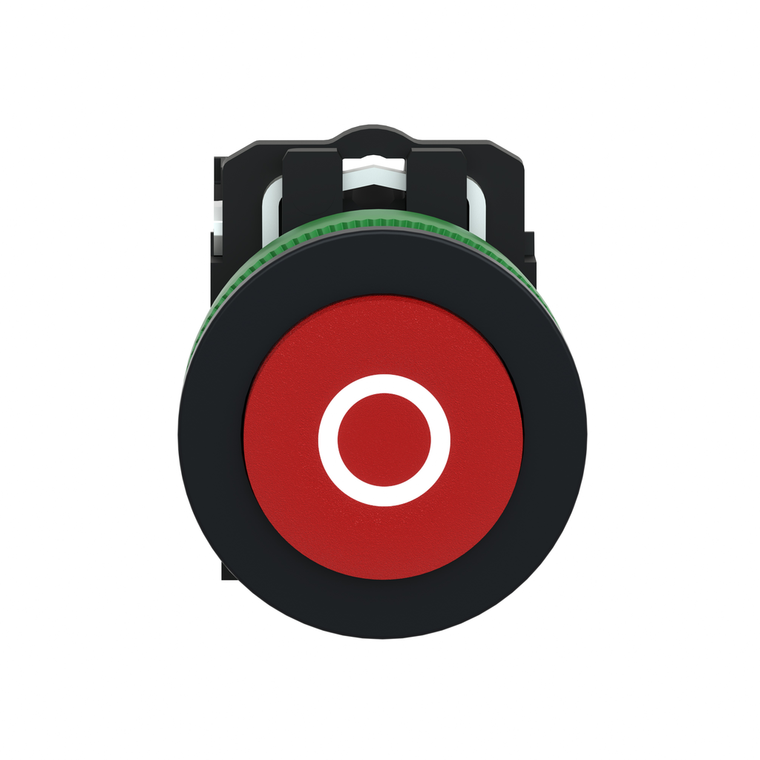

Schneider Electric XB5FL4322 Flush Red Proj Pb Wh Mark O 1Nc Screw Cl

Schneider Electric XB5FL4322 Flush Red Proj Pb Wh Mark O 1Nc Screw Cl

Schneider Electric
SKU:
XB5FL4322
|
UPC:
3606481360847
$51.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This flush mounted pushbutton is a part of the Harmony XB5 platic range and is a complete product. The mounting diameter is 30.5 mm. It has a "O" marking in white. Customized marking option is also available through web customization tool in Schneider Electric website. Improved ergonomics and aesthetics due to flush mount design. It comes with antimicrobial characteristics. The contact type is 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return, and the push mechanism is projecting push. The shape of the head is round and red. The bezel and the fixing collar is plastic. The weight of this pushbutton is 37 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. Accessories to be ordered separately are available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.
Additional Information
Overvoltage Category:
class II IEC 60536
Mechanical Durability:
10000000 cycles
Operating Travel:
1.5 mm NC changing electrical state) || 4.3 mm total travel)
Standards:
CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-5-4 || UL 508 || IEC 60947-1 || JIS C8201-5-1 || CE || JIS C8201-1 || ISO 22196:2011 || ISO 21702
Product Or Component Type:
push-button
Gcr Bridge:
XB5FLCUST01
Product Certifications:
UL Listed || CSA || CCC || EAC
Ik Degree Of Protection:
IK06 IEC 50102
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Product Compatibility:
ZBYF2101 || ZBYF4101 || ZBYF6101 || ZBYF6102 || ZBZF32 || ZBZF33 || ZB4FBZ007
Vibration Resistance:
5 gn 10-500 Hz)IEC 60068-2-6 || 2 mm peak to peak 2-10 Hz)IEC 60068-2-6
Device Short Name:
XB5F
Depth:
55 mm
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Head Type:
built-in-flush
Protective Treatment:
TH
Ambient Air Temperature For Operation:
-40-70 °C
Sustainable Offer Status:
Green Premium product
Compatibility Code:
XB5
Fixing Collar Material:
plastic
Customizable:
no
Contacts Usage:
standard contacts
Circularity Profile:
ENVEOLI1710010EN
Bezel Material:
plastic || dark grey plastic
Contact Operation:
slow-break
Reach Free Of Svhc:
Yes
Rohs Exemption Information:
Yes
Mounting Diameter:
30.5 mm
Type Of Operator:
spring return
Mercury Free:
Yes
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Ambient Air Temperature For Storage:
-40-70 °C
Environmental Disclosure:
ENVPEP1710010EN
Device Presentation:
complete product
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Operator Profile:
red projecting, O white)
Electrical Reliability:
λ < 10exp(-6) 5 V 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V 5 mA in clean environment IEC 60947-5-4
Range Of Product:
Harmony XB5
Width:
36.6 mm
Operating Force:
3.5 N NC changing electrical state
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
Electrical Durability:
1000000 cycles AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles DC-13, 0.2
Ip Degree Of Protection:
IP66 IEC 60529 || IP67 IEC 60529 || IP69 IEC 60529 || IP69K ISO 20653 || Type 13 UL 50 E || Type 12 UL 50 E || Type 4 UL 50 E || Type 4X UL 50 E
Contacts Material:
silver alloy (Ag/Ni)
[Ie] Rated Operational Current:
3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Height:
42 mm
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Sale Per Indivisible Quantity:
1
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Customizable:
1
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Toxic Heavy Metal Free:
Yes
Contacts Type And Composition:
1 NC
China Rohs Regulation:
X
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Terminals Description Iso N°1:
(21-22)NC
Positive Opening:
with IEC 60947-5-1 appendix K
Shape Of Signaling Unit Head:
round
Reach Regulation:
Free of Substances of Very High Concern above the threshold
