Schneider Electric XB5FVB3C0 Flush Complete Pilot Light 24V Green
Schneider Electric
$29.37
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

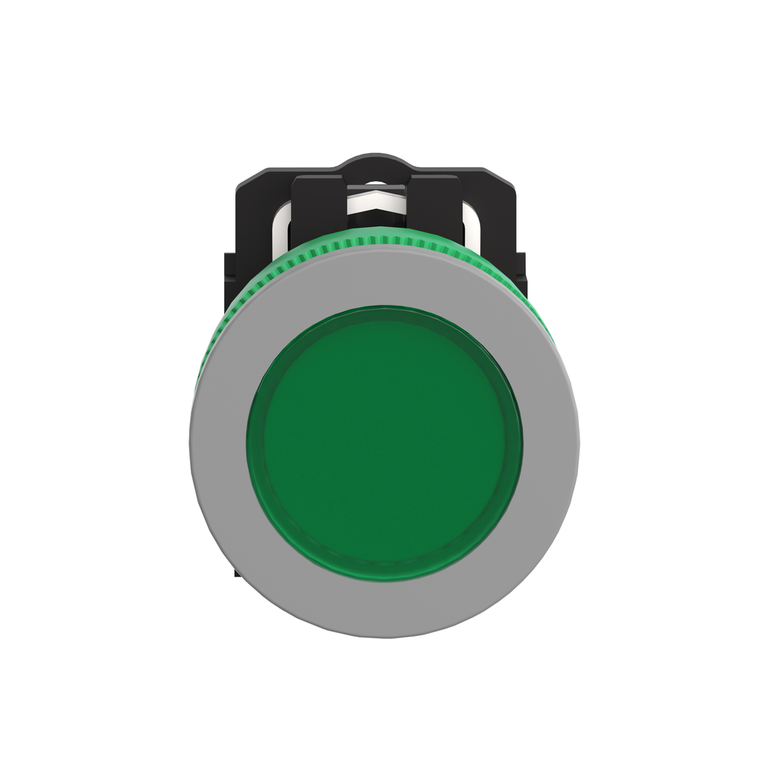

Schneider Electric XB5FVB3C0 Flush Complete Pilot Light 24V Green
This flush mounted pilot light is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 24 V AC/DC. Customized marking option through web customization tool is available in Schneider Electric website. The flush mount design of this pushbutton addresses the market demands for ergonomic and aesthetics. It has a plain lens and the source of light is a universal LED. The bright and long-lasting illumination makes it clearly distinguishable even at a disctance. The connection terminal is screw clamp. The shape of the head is round and green. The bezel is plastic color plated grey and the fixing collar is plastic. The weight of this pilot light is 38 grams, height is 42 mm and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted metal circular blanking plug, metal ring, spacer, protective washer, and flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.
- Fixing Collar Material:
- plastic
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Vibration Resistance:
- 5 gn 12-500 Hz)IEC 60068-2-6
- Electromagnetic Emission:
- class B IEC 55011
- Sale Per Indivisible Quantity:
- 1
- Product Or Component Type:
- pilot light
- Cap/Operator Or Lens Colour:
- green
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4
- Mercury Free:
- Yes
- Supply Voltage Limits:
- 19.2-30 V DC || 21.6-26.4 V AC
- Resistance To Electrostatic Discharge:
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Service Life:
- 100000 h at rated voltage and 25 °C
- China Rohs Regulation:
- X
- Current Consumption:
- 18 mA
- Resistance To Electromagnetic Fields:
- 10 V/m IEC 61000-4-3
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Device Presentation:
- complete product
- Protective Treatment:
- TH
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV IEC 60947-1
- Ambient Air Temperature For Operation:
- -40-70 °C
- Device Short Name:
- XB5F
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 IEC 60529
- Standards:
- JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-1
- Bulb Base:
- integral LED
- Mounting Diameter:
- 30.5 mm
- Shock Resistance:
- 50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Surge Withstand:
- 1 kV IEC 61000-4-5
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Ik Degree Of Protection:
- IK03 IEC 50102
- Overvoltage Category:
- class II IEC 60536
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Shape Of Signaling Unit Head:
- round
- Net Weight:
- 0.038 kg
- Head Type:
- built-in-flush
- [Ui] Rated Insulation Voltage:
- 250 V 3)IEC 60947-1
- Range Of Product:
- Harmony XB5
- Width:
- 36.6 mm
- Light Source Colour:
- green
- Bezel Material:
- plastic colour plated grey
- Terminals Description Iso N°1:
- (X1-X2)PL
- Depth:
- 55 mm
- Gcr Bridge:
- XB5FVCUST02
- Product Certifications:
- UL Listed || CSA
- Operator Additional Information:
- with plain lens
- [Us] Rated Supply Voltage:
- 24 V AC/DC 50/60 Hz
- Signalling Type:
- steady
- Light Source:
- universal LED
- Height:
- 42 mm
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- Electromagnetic Compatibility:
- electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con
- Ambient Air Temperature For Storage:
- -40-70 °C
- Important Message:
- Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block
- Rohs Exemption Information:
- Yes
