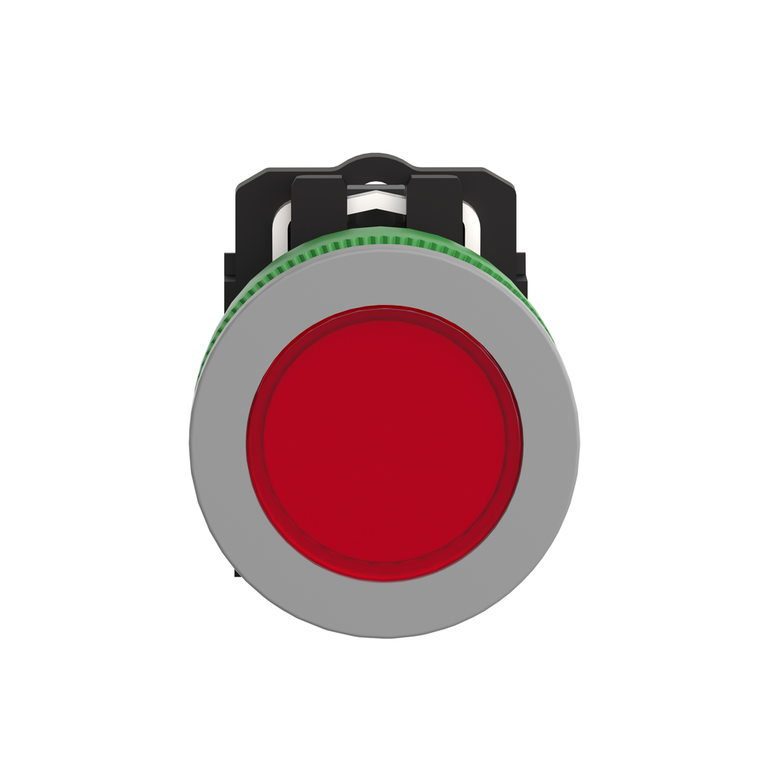

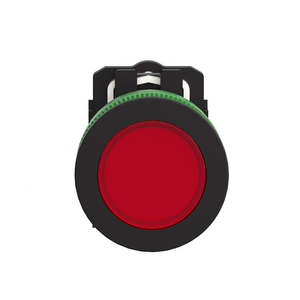

Schneider Electric XB5FVM4C0 Flush Complete Pilot Light 230 240V Red

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XB5FVM4C0 Flush Complete Pilot Light 230 240V Red

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5FVM4C0

UPC:

3606489761349

MPN:

Condition:

New

Head Type:

built-in-flush

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Height:

42 mm

Vibration Resistance:

5 gn 12-500 Hz)IEC 60068-2-6

Mercury Free:

Yes

Signalling Type:

steady

Ip Degree Of Protection:

IP66 IEC 60529 || IP67 IEC 60529

Terminals Description Iso N°1:

(X1-X2)PL

Surge Withstand:

1 kV IEC 61000-4-5

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

Gcr Bridge:

XB5FVCUST05

Net Weight:

0.038 kg

Ambient Air Temperature For Operation:

-40-70 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Width:

36.6 mm

Nema Degree Of Protection:

NEMA 13 || NEMA 4X

Fixing Collar Material:

plastic

Shape Of Signaling Unit Head:

round

Light Source:

universal LED

Light Source Colour:

red

Supply Voltage Limits:

195-264 V AC

Resistance To High Pressure Washer:

7000000 Pa 55 °C 0.1 m

Device Short Name:

XB5F

Sale Per Indivisible Quantity:

1

Ambient Air Temperature For Storage:

-40-70 °C

Electromagnetic Compatibility:

electrostatic discharge - test level: 6 kV (on contact (on metal parts)) conforming to IEC 61000-4-2 || electrostatic discharge - test level: 8 kV (in free air (in insulating parts)) conforming to IEC 61000-4-2 || electromagnetic emission class B con

Resistance To Fast Transients:

2 kV IEC 61000-4-4

[Us] Rated Supply Voltage:

230...240 V AC 50/60 Hz

Mounting Diameter:

30.5 mm

Protective Treatment:

TH

Cap/Operator Or Lens Colour:

red

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Shock Resistance:

50 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Bezel Material:

plastic colour plated grey

Connections - Terminals:

screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1

Overvoltage Category:

class II IEC 60536

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Device Presentation:

complete product

Range Of Product:

Harmony XB5

Bulb Base:

integral LED

Operator Additional Information:

with plain lens

Electromagnetic Emission:

class B IEC 55011

Depth:

55 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Rohs Exemption Information:

Yes

Standards:

JIS C8201-5-1 || CSA C22.2 No 14 || UL 508 || IEC 60947-1 || IEC 60947-5-4 || IEC 60947-5-1 || JIS C8201-1

Current Consumption:

14 mA

Product Certifications:

UL Listed || CSA

Important Message:

Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block

Product Or Component Type:

pilot light

Ik Degree Of Protection:

IK03 IEC 50102

China Rohs Regulation:

X

Service Life:

100000 h at rated voltage and 25 °C
