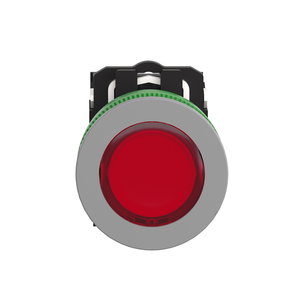

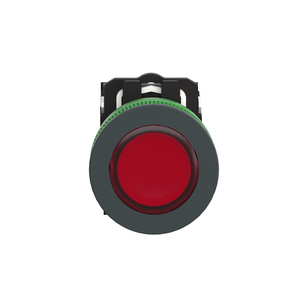

Schneider Electric XB5FW34G5 Flush Red Cap Ill Pb Led 120 1No 1Nc Scr
Schneider Electric
$119.30
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This flush mounted illuminated pushbutton is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 110 V to 120 V AC. Customized marking option through web customization tool in Schneider Electric website is available. Improved ergonomics and aesthetics due to flush mount design. It comes with antimicrobial characteristics. It has a plain lens and the source of light is a universal LED. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return. The shape of the head is round and red. The bezel and the fixing collar is plastic. The weight of this pushbutton is 52 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted plastic circular blanking plug, metal ring, protective washer, and plastic flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring. It is eco-friendly and complies with directives such as RoHS, WEEE, etc. related to environmental protection.
- Important Message:
- Viktig information: en förändring i utseendet kan observeras på produkten, men detta påverkar inte dess användning i termer av funktion och säkerhet. Detta gör den kompatibel med våra Universal LED-block
- Resistance To High Pressure Washer:
- 7000000 Pa 55 °C 0.1 m
- Positive Opening:
- with IEC 60947-5-1 appendix K
- Product Or Component Type:
- illuminated push-button
- Environmental Disclosure:
- ENVPEP1710010EN
- Ambient Air Temperature For Operation:
- -40-70 °C
- Mechanical Durability:
- 10000000 cycles
- Range Of Product:
- Harmony XB5
- Circularity Profile:
- ENVEOLI1710010EN
- Contact Operation:
- slow-break
- Fixing Collar Material:
- plastic
- Electrical Reliability:
- λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
- Operator Profile:
- red flush, unmarked
- [Uimp] Rated Impulse Withstand Voltage:
- 6 kV IEC 60947-1
- Resistance To Electrostatic Discharge:
- 6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2
- Surge Withstand:
- 1 kV IEC 61000-4-5
- [Us] Rated Supply Voltage:
- 110...120 V AC 50/60 Hz
- Contacts Usage:
- standard contacts
- Head Type:
- built-in-flush
- Rohs Exemption Information:
- Yes
- Terminals Description Iso N°1:
- (21-22)NC || (13-14)NO
- Device Presentation:
- complete product
- Protective Treatment:
- TH
- Shape Of Signaling Unit Head:
- round
- Supply Voltage Limits:
- 100-132 V AC
- Shape Of Screw Head:
- cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Sustainable Offer Status:
- Green Premium product
- Standards:
- IEC 60947-1 || UL 508 || JIS C8201-5-1 || IEC 60947-5-4 || IEC 60947-5-1 || CSA C22.2 No 14 || JIS C8201-1 || ISO 22196:2011 || ISO 21702
- Bulb Base:
- integral LED
- Electrical Durability:
- 1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
- Device Short Name:
- XB5F
- [Ith] Conventional Free Air Thermal Current:
- 10 A IEC 60947-5-1
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Height:
- 42 mm
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Electromagnetic Emission:
- class B IEC 55011
- Service Life:
- 100000 h at rated voltage and 25 °C
- Ik Degree Of Protection:
- IK03 IEC 50102
- Type Of Operator:
- spring return
- Nema Degree Of Protection:
- NEMA 13 || NEMA 4X
- China Rohs Regulation:
- X
- Cap/Operator Or Lens Colour:
- red
- Ambient Air Temperature For Storage:
- -40-70 °C
- Product Certifications:
- UL Listed || CSA
- Operating Force:
- 3.5 N NC changing electrical state || 3.8 N
- Sale Per Indivisible Quantity:
- 1
- Width:
- 36.6 mm
- Bezel Material:
- dark grey plastic
- Operating Travel:
- 1.5 mm NC changing electrical state) || 2.6 mm NO changing electrical state) || 4.3 mm total travel)
- Contacts Type And Composition:
- 1 NO + 1 NC
- Overvoltage Category:
- class II IEC 60536
- Shock Resistance:
- 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
- Mercury Free:
- Yes
- Short-Circuit Protection:
- 10 A cartridge fuse gG IEC 60947-5-1
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
- Depth:
- 55 mm
- Mounting Diameter:
- 30.5 mm
- [Ui] Rated Insulation Voltage:
- 600 V 3)IEC 60947-1
- Current Consumption:
- 14 mA
- Operator Additional Information:
- with plain lens
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Contacts Material:
- silver alloy (Ag/Ni)
- [Ie] Rated Operational Current:
- 3 A 240 V, AC-15, A600 IEC 60947-5-1 || 6 A 120 V, AC-15, A600 IEC 60947-5-1 || 0.1 A 600 V, DC-13, Q600 IEC 60947-5-1 || 0.27 A 250 V, DC-13, Q600 IEC 60947-5-1 || 0.55 A 125 V, DC-13, Q600 IEC 60947-5-1 || 1.2 A 600 V, AC-15, A600 IEC 60947-5-1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Ip Degree Of Protection:
- IP66 IEC 60529 || IP67 || IP69 || IP69K
- Resistance To Fast Transients:
- 2 kV IEC 61000-4-4
- Resistance To Electromagnetic Fields:
- 10 V/m IEC 61000-4-3
- Light Source:
- universal LED
- Signalling Type:
- steady
- Catalog:
- View
