Schneider Electric XB5KS2B8 Continuous Orintermitent Illuminated Ye

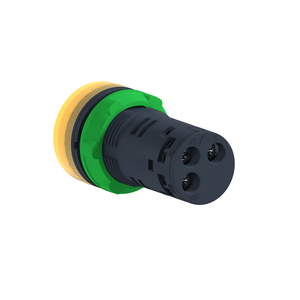

This indicating bank buzzer is an accessory designed as an audible and signaling unit for custom assembly. It has a continuous or intermittent signal and its sound acoustic level is adjustable. It complies with EN/IEC60947-1, EN/IEC60947-4-1, EN/IEC60947-5-1, JIS C 4520, UL 508, CSA C22.2 No 14 standards. It is also dust, impact, high pressure washer, vibration and corrosion resistant thanks to its IP69, IP67, IP66 protection, making it ideal for operation in harsh environments.
- Product Or Component Type:
- annunciator
- Signalling Type:
- continuous or intermittent tone
- Sustainable Offer Status:
- Green Premium product
- Height:
- 29 mm
- Standards:
- IEC 60947-1 || JIS C8201-5-1 || UL 508 || IEC 60947-5-1 || IEC 60947-5-4 || CSA C22.2 No 14 || JIS C8201-1 || IEC 60529 || IEC 62262 || IEC 50102
- Current Consumption:
- <= 58 mA
- Overvoltage Category:
- class II IEC 60536
- Net Weight:
- 0.024 kg
- [Us] Rated Supply Voltage:
- 24 V +/- 10 %
- Mercury Free:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Mounting Diameter:
- 22 mm
- Width:
- 29 mm
- Resistance To High Pressure Washer:
- 9000000 Pa 80 °C 0.1 m
- Supply Frequency:
- 50/60 Hz
- Bezel Material:
- plastic
- Cap/Operator Or Lens Colour:
- yellow
- Protective Treatment:
- TH
- Rohs Exemption Information:
- Yes
- Ambient Air Temperature For Operation:
- -40-70 °C
- Depth:
- 55 mm
- Environmental Disclosure:
- ENVPEP1710008EN
- Ambient Air Temperature For Storage:
- -40-70 °C
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Noise Level:
- 90 dB 6.8 kHz 0.1 m +/- 10 %
- Supply Circuit Type:
- AC/DC
- Nema Degree Of Protection:
- NEMA 4X || NEMA 13
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Circularity Profile:
- N/A
- China Rohs Regulation:
- X
- Range Of Product:
- Harmony XB5
- Product Certifications:
- UL Listed || CSA || BV
- Catalog:
- View
- Datasheet:
- View
