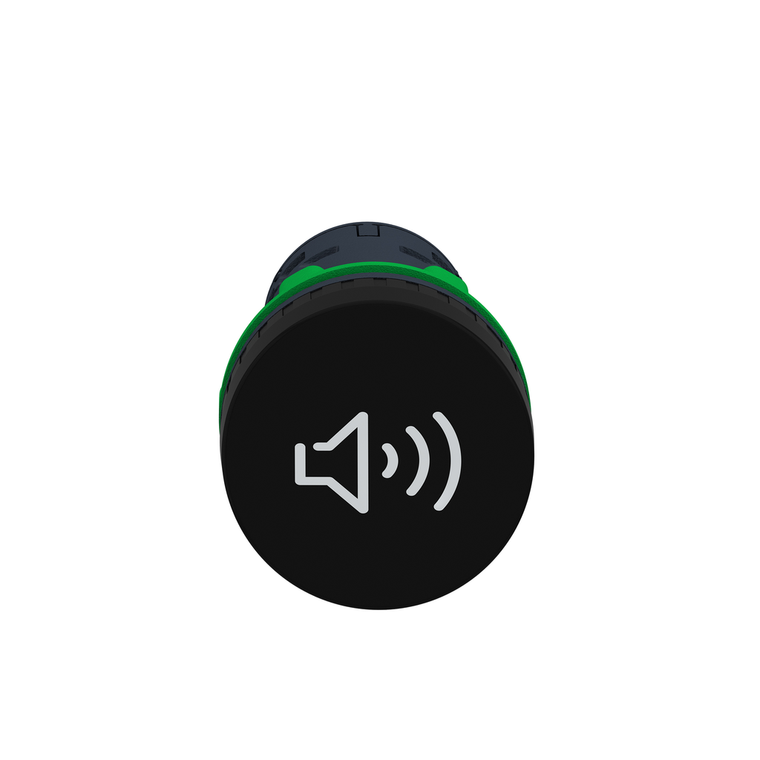

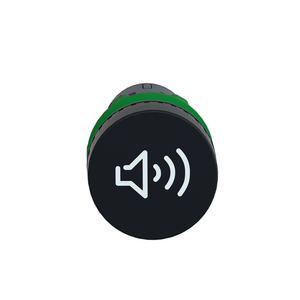

Schneider Electric XB5KSB Dia 22 80 Db Buzzer

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB5KSB Dia 22 80 Db Buzzer

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB5KSB

UPC:

3389110102666

MPN:

Condition:

New

Warranty:

18 months

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ambient Air Temperature For Storage:

-40-70 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Current Consumption:

<= 28 mA

Standards:

IEC 60947-5-1 || IEC 60947-1 || IEC 60947-5-4 || CSA C22.2 No 14 || UL 508 || JIS C8201-5-1 || JIS C8201-1 || IEC 60529 || IEC 62262 || IEC 50102

Mounting Diameter:

22 mm

Signalling Type:

continuous or intermittent tone

Height:

29 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Noise Level:

90 dB 6.8 kHz 0.1 m +/- 10 %

Bezel Material:

dark grey plastic

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Product Or Component Type:

annunciator

Net Weight:

0.024 kg

Resistance To High Pressure Washer:

9000000 Pa 80 °C 0.1 m

[Us] Rated Supply Voltage:

24 V +/- 10 %

Ambient Air Temperature For Operation:

-40-70 °C

Protective Treatment:

TH

Width:

29 mm

Cap/Operator Or Lens Colour:

black

Product Certifications:

UL Listed || CSA || BV

Rohs Exemption Information:

Yes

Sustainable Offer Status:

Green Premium product

Supply Circuit Type:

AC/DC

Environmental Disclosure:

ENVPEP1710008EN

Circularity Profile:

N/A

Mercury Free:

Yes

Head Type:

standard

China Rohs Regulation:

X

Depth:

55 mm

Overvoltage Category:

class II IEC 60536

Nema Degree Of Protection:

NEMA 4X || NEMA 13

Supply Frequency:

50/60 Hz

Electrical Shock Protection Class:

class II IEC 60536

Range Of Product:

Harmony XB5
