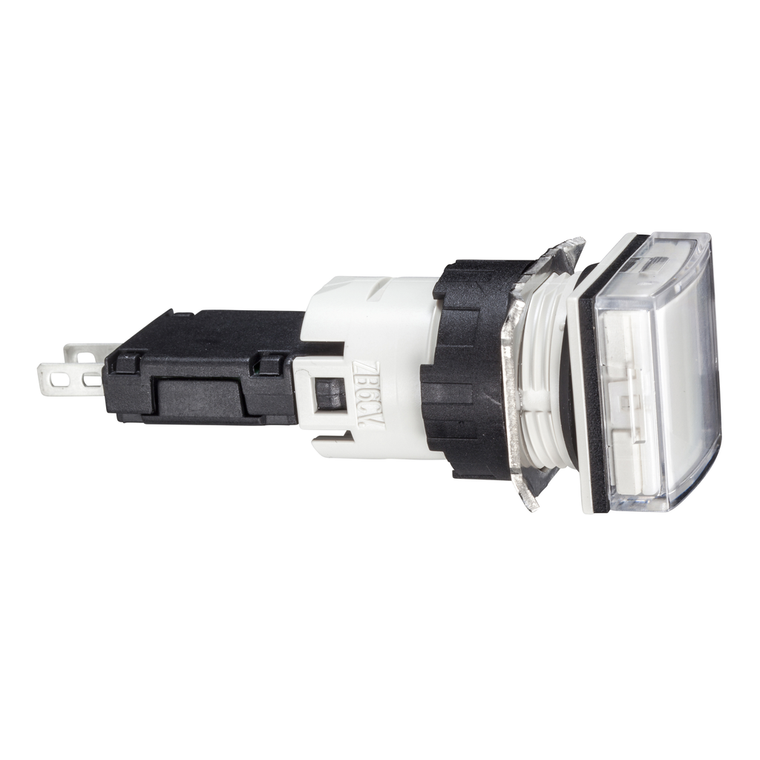

Schneider Electric XB6CV1BB Square Pilot Light Diam 16 Ip 65 White I

(No reviews yet) Write a Review

Write a Review

Schneider Electric XB6CV1BB Square Pilot Light Diam 16 Ip 65 White I

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB6CV1BB

UPC:

3389110764444

MPN:

Condition:

New

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Electromagnetic Emission:

class B EN 55011

Cap/Operator Or Lens Colour:

white

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Surge Withstand:

1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5

[Uimp] Rated Impulse Withstand Voltage:

4 kV EN/IEC 60947-1

Environmental Disclosure:

ENVPEP1710010EN

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Circularity Profile:

ENVEOLI1710010EN

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Certifications:

CCC || CSA || UL || GOST

Ambient Air Temperature For Operation:

-25-70 °C

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Mercury Free:

Yes

Light Source:

LED

[Us] Rated Supply Voltage:

12...24 V AC/DC

Product Or Component Type:

complete pilot light

Range Of Product:

Harmony XB6

Signalling Type:

steady

Light Block Supply:

direct

Shape Of Signaling Unit Head:

square

Connections - Terminals:

Faston connectors 2.8 x 0.5 mm

Sale Per Indivisible Quantity:

1

Net Weight:

0.015 kg

Protective Treatment:

TC

Nema Degree Of Protection:

NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Ip Degree Of Protection:

IP65 IEC 60529

Operating Position:

any position

Ambient Air Temperature For Storage:

-40-70 °C

Height:

18 mm

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Width:

18 mm

Terminals Description Iso N°1:

(+ -)PL

Bulb Base:

integral LED

Bezel Material:

plastic

Mounting Diameter:

16 mm

Supply Voltage Limits:

6-30 V AC/DC

Warranty:

18 months

Device Short Name:

XB6

Rohs Exemption Information:

Yes

Standards:

EN/IEC 60947-1 || EN/IEC 60947-5-5 || UL 508 || JIS C 852 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-5-1 || JIS C8201-1

Sustainable Offer Status:

Green Premium product

Electrical Shock Protection Class:

class II IEC 61140

Depth:

57 mm

[Ui] Rated Insulation Voltage:

250 V 2)EN/IEC 60947-1

China Rohs Regulation:

X

Current Consumption:

15 mA
