Schneider Electric

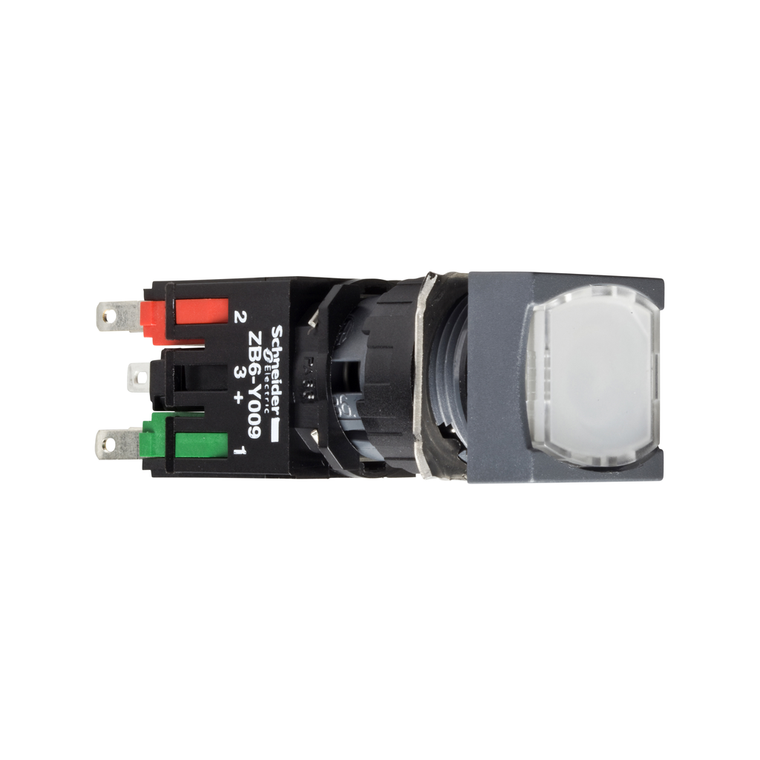

Schneider Electric XB6CW1B5B White Illuminated Pushbut To N Diam 16 F

SKU:

XB6CW1B5B

UPC:

3389110763744

MPN:

Condition:

New

[Ie] Rated Operational Current:

3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1

Electrical Shock Protection Class:

class II IEC 61140

Bezel Material:

plastic

Supply Voltage Limits:

6-30 V AC/DC

Net Weight:

0.025 kg

Device Short Name:

XB6

Terminals Description Iso N°1:

(21-22)NC || (13-14)NO

Positive Opening:

with EN/IEC 60947-5-1 appendix K

Electrical Durability:

1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Sustainable Offer Status:

Green Premium product

Contacts Type And Composition:

1 NO + 1 NC

Cad Overall Height:

18 mm

Product Certifications:

GOST || CCC || UL || CSA

Operator Profile:

white flush, unmarked

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Sale Per Indivisible Quantity:

1

Ip Degree Of Protection:

IP65 IEC 60529

Contact Operation:

slow-break

Cad Overall Width:

18 mm

Electromagnetic Emission:

class B IEC 55011

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ambient Air Temperature For Storage:

-40-70 °C

Operating Travel:

1 mm NO changing electrical state) || 2 mm NC changing electrical state) || 3.5 mm total travel)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Protective Treatment:

TC

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Current Consumption:

15 mA

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Nema Degree Of Protection:

NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94

Environmental Disclosure:

ENVPEP1710010EN

Surge Withstand:

1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5

Signalling Type:

steady

Cad Overall Depth:

57 mm

Ambient Air Temperature For Operation:

-25-70 °C

Light Source:

LED

Warranty:

18 months

Mercury Free:

Yes

[Ui] Rated Insulation Voltage:

250 V 3)EN/IEC 60947-1

Connections - Terminals:

Faston connectors 2.8 x 0.5 mm

Rohs Exemption Information:

Yes

Mounting Diameter:

16 mm

Operating Position:

any position

Contacts Material:

silver alloy (Ag/Ni)

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Bulb Base:

integral LED

Shape Of Signaling Unit Head:

square

Short-Circuit Protection:

6 A cartridge fuse gG

Operating Force:

3.5 N NO changing electrical state || 4.5 N NC changing electrical state

China Rohs Regulation:

X

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Standards:

EN/IEC 60947-1 || JIS C 852 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || CSA C22.2 No 14 || JIS C 4520

Electrical Reliability:

λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4

Circularity Profile:

ENVEOLI1710010EN

Range Of Product:

Harmony XB6

Product Or Component Type:

complete illuminated push-button

[Us] Rated Supply Voltage:

12...24 V AC/DC

Type Of Operator:

spring return

[Uimp] Rated Impulse Withstand Voltage:

4 kV EN/IEC 60947-1
