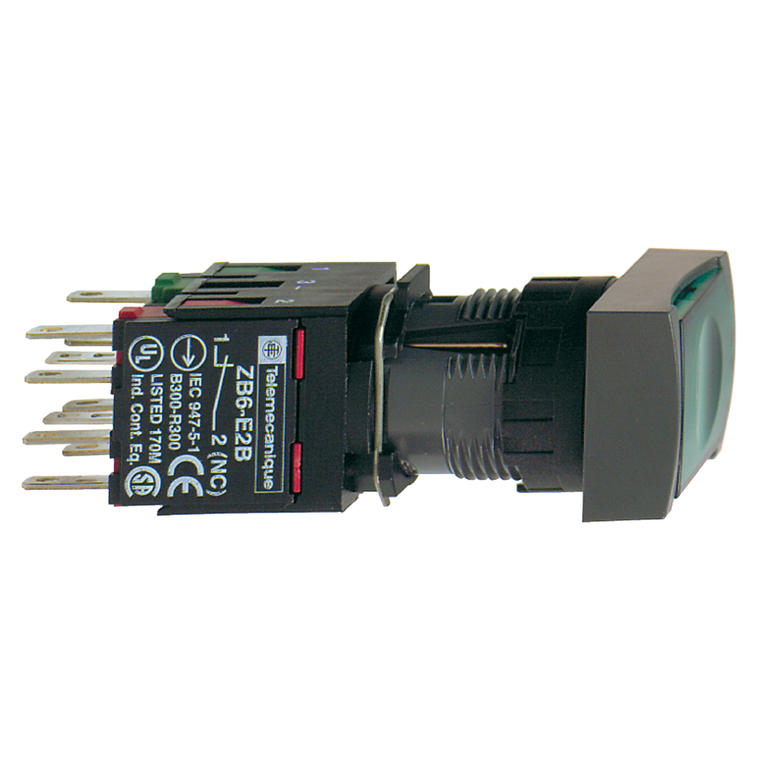

Schneider Electric XB6DF3B1B Green Illuminated Pushbut To N Diam 16 F

SKU:

XB6DF3B1B

UPC:

3389110763942

MPN:

Condition:

New

Ambient Air Temperature For Operation:

-25-70 °C

Contact Operation:

slow-break

China Rohs Regulation:

X

Warranty:

18 months

[Ui] Rated Insulation Voltage:

250 V 3)EN/IEC 60947-1

Shape Of Signaling Unit Head:

rectangular

Operating Travel:

1 mm NO changing electrical state) || 3.5 mm total travel)

Net Weight:

0.022 kg

Positive Opening:

with EN/IEC 60947-5-1 appendix K

Protective Treatment:

TC

Bezel Material:

plastic

Depth:

57 mm

Operator Profile:

green flush, unmarked

Mounting Diameter:

16 mm

Ambient Air Temperature For Storage:

-40-70 °C

Electrical Reliability:

λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4

Rohs Exemption Information:

Yes

Ip Degree Of Protection:

IP65 IEC 60529

Electrical Durability:

1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 EN/IEC 60947-5-1 appendix C

Signalling Type:

steady

Sale Per Indivisible Quantity:

1

Terminals Description Iso N°1:

(13-14)NO

Sustainable Offer Status:

Green Premium product

Current Consumption:

15 mA

Contacts Material:

silver alloy (Ag/Ni)

Width:

24 mm

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Type Of Operator:

latching

Contacts Type And Composition:

1 NO

[Uimp] Rated Impulse Withstand Voltage:

4 kV EN/IEC 60947-1

Short-Circuit Protection:

6 A cartridge fuse gG

Operating Force:

3.5 N NO changing electrical state

Device Short Name:

XB6

Mercury Free:

Yes

Surge Withstand:

1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Range Of Product:

Harmony XB6

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Operating Position:

any position

Environmental Disclosure:

ENVPEP1710010EN

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Electromagnetic Emission:

class B IEC 55011

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

[Ie] Rated Operational Current:

3 A 120 V, AC-15, B300 EN/IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 EN/IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1

Light Source:

LED

Standards:

CSA C22.2 No 14 || JIS C 4520 || UL 508 || EN/IEC 60947-5-1 || EN/IEC 60947-5-5 || EN/IEC 60947-1 || JIS C 852

Bulb Base:

integral LED

[Us] Rated Supply Voltage:

12...24 V AC/DC

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Certifications:

CSA || GOST || UL || CCC

Connections - Terminals:

Faston connectors 2.8 x 0.5 mm

Supply Voltage Limits:

6-30 V AC/DC

Circularity Profile:

ENVEOLI1710010EN

Nema Degree Of Protection:

NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94

Height:

18 mm

Product Or Component Type:

complete illuminated push-button

Electrical Shock Protection Class:

class II IEC 61140

Catalog:

View

Datasheet:

View
