Schneider Electric XB6DW4B2B Red Illuminated Pushbut To N Diam 16 Flu

(No reviews yet) Write a Review

Write a Review

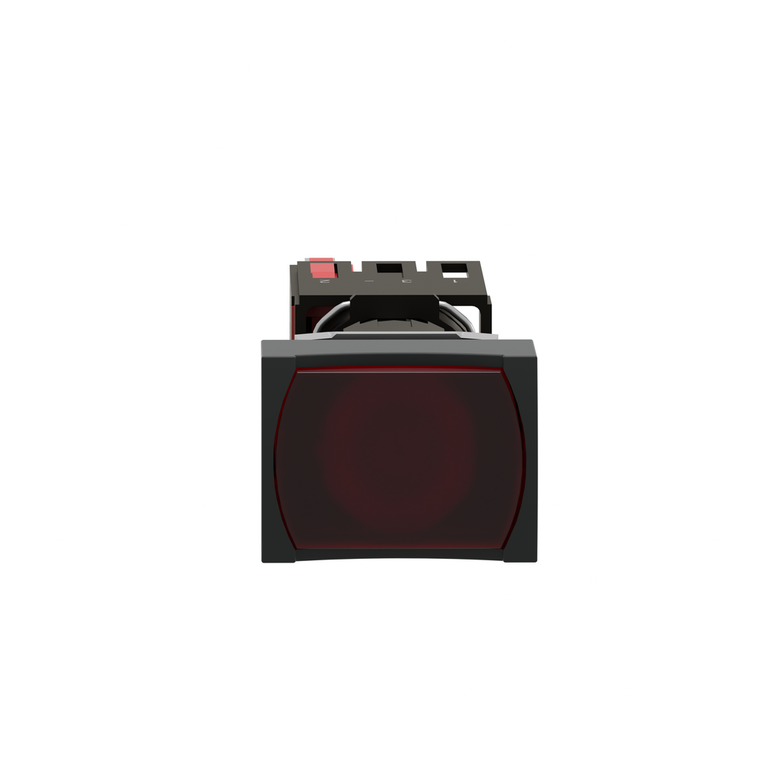

Schneider Electric XB6DW4B2B Red Illuminated Pushbut To N Diam 16 Flu

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XB6DW4B2B

UPC:

3389110763843

MPN:

Condition:

New

China Rohs Regulation:

X

Bulb Base:

integral LED

Cad Overall Width:

24 mm

Sustainable Offer Status:

Green Premium product

[Ie] Rated Operational Current:

3 A 120 V, AC-15, B300 IEC 60947-5-1 || 1.5 A 240 V, AC-15, B300 IEC 60947-5-1 || 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1

Nema Degree Of Protection:

NEMA 13 UL 50 || NEMA 4 UL 50 || NEMA 4X UL 50 || NEMA 13 CSA C22.2 No 94 || NEMA 4 CSA C22.2 No 94 || NEMA 4X CSA C22.2 No 94

Rohs Exemption Information:

Yes

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Type Of Operator:

spring return

Electrical Reliability:

λ = 10exp(-8) 5 V 1 mA with confidence level of 90 % IEC 60947-5-4

Light Source:

LED

Cad Overall Depth:

57 mm

Ip Degree Of Protection:

IP65 IEC 60529

Surge Withstand:

1 kV direct contact IEC 61000-4-5 || 2 kV in free air IEC 61000-4-5

Operating Force:

4.5 N NC changing electrical state

Standards:

IEC 60947-5-5 || IEC 60947-1 || JIS C 4520 || CSA C22.2 No 14 || JIS C 852 || IEC 60947-5-1

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

[Ui] Rated Insulation Voltage:

250 V 3)IEC 60947-1

[Us] Rated Supply Voltage:

12...24 V AC/DC

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Product Or Component Type:

complete illuminated push-button

Protective Treatment:

TC

Operating Travel:

2 mm NC changing electrical state) || 3.5 mm total travel)

Contact Operation:

slow-break

Shape Of Signaling Unit Head:

rectangular

Environmental Disclosure:

ENVPEP1710010EN

Cad Overall Height:

18 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Circularity Profile:

ENVEOLI1710010EN

Ambient Air Temperature For Operation:

-25-70 °C

Bezel Material:

plastic

Supply Voltage Limits:

6-30 V AC/DC

Sale Per Indivisible Quantity:

1

Electrical Shock Protection Class:

class II IEC 61140

Operator Profile:

red flush, unmarked

Mounting Diameter:

16 mm

Product Certifications:

UL || CSA || CCC || GOST

Net Weight:

0.022 kg

Operating Position:

any position

Shock Resistance:

30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27

Resistance To Fast Transients:

2 kV IEC 61000-4-4

Contacts Type And Composition:

1 NC

Terminals Description Iso N°1:

(21-22)NC

Mercury Free:

Yes

Electrical Durability:

1000000 cycles, AC-15 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C

Electromagnetic Emission:

class B IEC 55011

Contacts Material:

silver alloy (Ag/Ni)

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

Resistance To Electrostatic Discharge:

6 kV on contact (on metal parts) IEC 61000-4-2 || 8 kV in free air (in insulating parts) IEC 61000-4-2

Positive Opening:

with IEC 60947-5-1 appendix K

Signalling Type:

steady

Resistance To Electromagnetic Fields:

10 V/m IEC 61000-4-3

Short-Circuit Protection:

6 A cartridge fuse gG

Ambient Air Temperature For Storage:

-40-70 °C

Warranty:

18 months

Connections - Terminals:

Faston connectors 2.8 x 0.5 mm

Device Short Name:

XB6

Vibration Resistance:

+/- 3 mm 2-500 Hz)IEC 60068-2-6 || 5 gn 2-500 Hz)IEC 60068-2-6

Range Of Product:

Harmony XB6

Current Consumption:

15 mA
