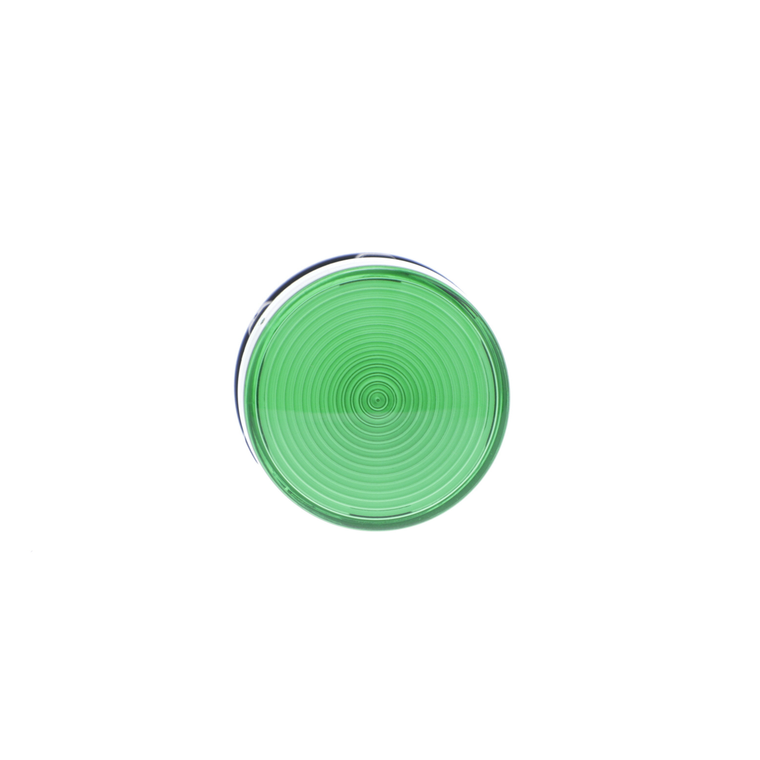

Schneider Electric XB7EV03BP Led Green Pilot Light 24V Pack of 10

Schneider Electric XB7EV03BP Led Green Pilot Light 24V Pack of 10

Schneider Electric
SKU:
XB7EV03BP
|
UPC:
3389110839722
$360.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description
This Harmony XB7, plain lens monolithic green pilot light is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Additional Information
[Us] Rated Supply Voltage:
24 V AC/DC 50/60 Hz
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Current Consumption:
20...27 mA
Circularity Profile:
ENVEOLI1805012EN
Environmental Disclosure:
ENVPEP1805012EN
Range Of Product:
Harmony XB7
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Reach Free Of Svhc:
Yes
Sustainable Offer Status:
Green Premium product
Height:
29 mm
Overvoltage Category:
class II IEC 60536
Depth:
54 mm
Mounting Diameter:
22 mm
Shock Resistance:
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Shape Of Screw Head:
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
[Ui] Rated Insulation Voltage:
250 V 3)IEC 60947-1
Ambient Air Temperature For Storage:
-40-70 °C
Device Short Name:
XB7
Cap/Operator Or Lens Colour:
green
Standards:
UL 508 || JIS C8201-5-1 || CSA C22.2 No 14 || IEC 60947-5-1 || IEC 60947-1 || JIS C8201-1
Width:
29 mm
Product Or Component Type:
pilot light
Service Life:
70000 h at rated voltage and 25 °C
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Protective Treatment:
TH
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption Information:
Yes
Warranty:
18 months
Electromagnetic Compatibility:
disturbing field emission class B conforming to IEC 55011
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Light Source:
LED
Fixing Center:
>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
Bulb Base:
integral LED
Signalling Type:
steady
Device Mounting:
fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-5-1
Shape Of Signaling Unit Head:
round
Ambient Air Temperature For Operation:
-25-70 °C
Nema Degree Of Protection:
NEMA 4 UL 50 E || NEMA 12 UL 50 E
Toxic Heavy Metal Free:
Yes
Supply Voltage Limits:
19.2-30 V DC || 21.6-26.4 V AC
Terminals Description Iso N°1:
(X1-X2)PL
Sale Per Indivisible Quantity:
10
Mercury Free:
Yes
Net Weight:
0.02 kg
Fixing Mode:
fixing nut beneath head 2-2.4 N.m
China Rohs Regulation:
X
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Device Presentation:
monolithic product
Ip Degree Of Protection:
IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
