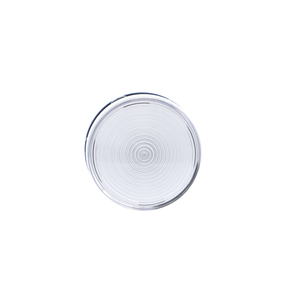

Schneider Electric XB7EV07GP 120Vac Led Pilot Light Clear Ip65 Screw Pack of 10

Schneider Electric XB7EV07GP 120Vac Led Pilot Light Clear Ip65 Screw Pack of 10

Schneider Electric
SKU:
XB7EV07GP
|
UPC:
3389119041225
Availability:
Contact us to confirm availability and lead times.
$360.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB7, plain lens monolithic clear pilot light is supplied with 120V AC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Additional Information
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Us] Rated Supply Voltage:
120 V AC 50/60 Hz
Signalling Type:
steady
Device Mounting:
fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-5-1
Shape Of Screw Head:
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Bulb Base:
integral LED
Toxic Heavy Metal Free:
Yes
Device Presentation:
monolithic product
Overvoltage Category:
class II IEC 60536
Shock Resistance:
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Protective Treatment:
TH
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Fixing Mode:
fixing nut beneath head 2-2.4 N.m
Fixing Center:
>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
Width:
29 mm
Reach Free Of Svhc:
Yes
Light Source:
LED
Circularity Profile:
ENVEOLI1805012EN
Warranty:
18 months
Terminals Description Iso N°1:
(X1-X2)PL
Ambient Air Temperature For Operation:
-25-55 °C
China Rohs Regulation:
X
Supply Voltage Limits:
100-132 V AC
Height:
29 mm
Device Short Name:
XB7
Net Weight:
0.02 kg
Depth:
54 mm
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.22...2 x 2.5 mm² without cable end IEC 60947-1
Standards:
JIS C8201-5-1 || IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-1
Service Life:
70000 h at rated voltage and 25 °C
Range Of Product:
Harmony XB7
Mercury Free:
Yes
[Ui] Rated Insulation Voltage:
250 V 3)IEC 60947-1
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
Sustainable Offer Status:
Green Premium product
Product Or Component Type:
pilot light
Sale Per Indivisible Quantity:
10
Ambient Air Temperature For Storage:
-40-70 °C
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rohs Exemption Information:
Yes
Electromagnetic Compatibility:
disturbing field emission class B conforming to IEC 55011
Mounting Diameter:
22 mm
Cap/Operator Or Lens Colour:
clear
Shape Of Signaling Unit Head:
round
Environmental Disclosure:
ENVPEP1805012EN
Ip Degree Of Protection:
IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
Nema Degree Of Protection:
NEMA 4 UL 50 E || NEMA 12 UL 50 E
Current Consumption:
18...21 mA
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
