Schneider Electric XB7NA23 Pb - Spring Rtn, Black - 2No Pack of 10
Schneider Electric
$280.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

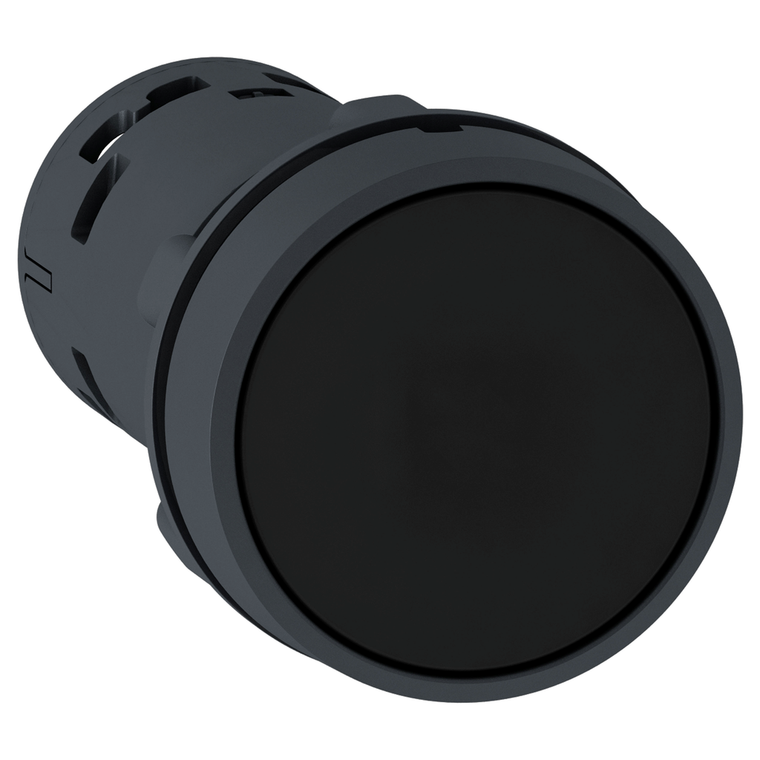

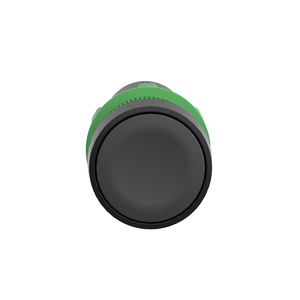

Schneider Electric XB7NA23 Pb - Spring Rtn, Black - 2No Pack of 10
This Harmony XB7, flush monolithic black push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
- Ambient Air Temperature For Storage:
- -40-70 °C
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Type Of Operator:
- spring return
- Range Of Product:
- Harmony XB7
- Sustainable Offer Status:
- Green Premium product
- [Ui] Rated Insulation Voltage:
- 250 V 3)IEC 60947-1
- Device Short Name:
- XB7
- Net Weight:
- 0.021 kg
- Warranty:
- 18 months
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
- [Ie] Rated Operational Current:
- 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
- Shock Resistance:
- 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- Shape Of Signaling Unit Head:
- round
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ip Degree Of Protection:
- IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
- Product Or Component Type:
- push-button
- Operator Profile:
- black flush, unmarked
- Toxic Heavy Metal Free:
- Yes
- Positive Opening:
- with (only NO)
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Fixing Mode:
- fixing nut beneath head 2-2.4 N.m
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV IEC 60947-1
- Electrical Durability:
- 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Terminals Description Iso N°1:
- (23-24)NO || (13-14)NO
- Cad Overall Depth:
- 51.5 mm
- Mechanical Durability:
- 1000000 cycles
- Electrical Reliability:
- λ <= 10exp(-6) 17 V, 5 mA IEC 60947-5-4
- Overvoltage Category:
- class II IEC 61140
- Contact Operation:
- slow-break
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Device Presentation:
- monolithic product
- China Rohs Regulation:
- X
- Fixing Center:
- >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
- Cad Overall Width:
- 29 mm
- Product Certifications:
- CCC || GOST
- Contacts Type And Composition:
- 2 NO
- Nema Degree Of Protection:
- NEMA 12 UL 50 E || NEMA 3 UL 50 E
- Ambient Air Temperature For Operation:
- -25-70 °C
- Shape Of Screw Head:
- cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Standards:
- IEC 60947-5-1 || JIS C8201-5-1 || IEC 60947-1 || CSA C22.2 No 14 || UL 508 || JIS C8201-1
- Circularity Profile:
- ENVEOLI1805012EN
- Cad Overall Height:
- 29 mm
- Mounting Diameter:
- 22 mm
- Short-Circuit Protection:
- 4 A cartridge fuse gG IEC 60947-5-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Sale Per Indivisible Quantity:
- 10
- Device Mounting:
- fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1
- Protective Treatment:
- TH
- Environmental Disclosure:
- ENVPEP1805012EN
