Schneider Electric XB7NA4534 Pb - Spring Rtn, Red - No And Nc -White Pack of 10

Schneider Electric XB7NA4534 Pb - Spring Rtn, Red - No And Nc -White Pack of 10

Schneider Electric
SKU:
XB7NA4534
|
UPC:
3.60648E+12
$466.50
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

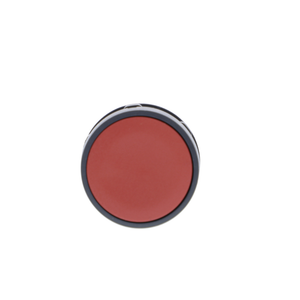

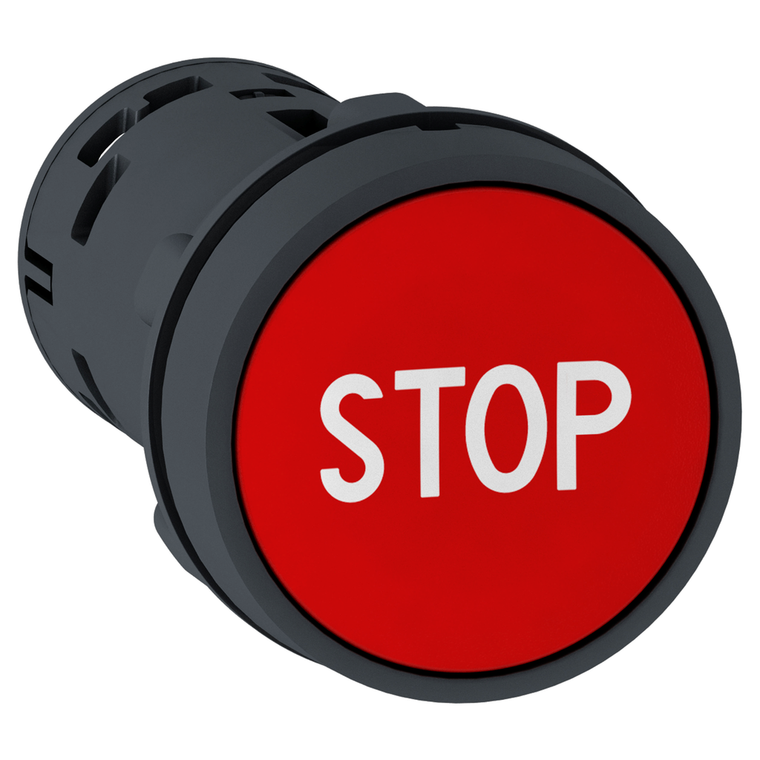

This Harmony XB7, flush monolithic red push button operates with a spring return / impulse mechanism and uses screw-clamp terminals. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Additional Information
Operator Profile:
red flush, STOP white)
Environmental Disclosure:
ENVPEP1805012EN
Product Or Component Type:
push-button
California Proposition 65:
WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Rohs Exemption Information:
Yes
Overvoltage Category:
class II IEC 61140
Toxic Heavy Metal Free:
Yes
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Device Mounting:
fixing hole 22.5 mm 22.3 +0.4/0 EN/IEC 60947-1
Nema Degree Of Protection:
NEMA 12 UL 50 E || NEMA 3 UL 50 E
Ip Degree Of Protection:
IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
Tightening Torque:
0.8-1.2 N.m EN 60947-1
Cad Overall Height:
29 mm
Fixing Center:
>= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
Positive Opening:
with NC contact EN/IEC 60947-5-1 appendix K
Contact Operation:
slow-break
Sale Per Indivisible Quantity:
10
Electrical Durability:
1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 EN/IEC 60947-5-1 appendix C
[Ie] Rated Operational Current:
0.1 A 250 V, DC-13, R300 EN/IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 EN/IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 EN/IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 EN/IEC 60947-5-1
Mercury Free:
Yes
Type Of Operator:
spring return
[Uimp] Rated Impulse Withstand Voltage:
4 kV EN/IEC 60947-1
Product Certifications:
CCC || GOST
Ambient Air Temperature For Operation:
-25-70 °C
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Device Presentation:
monolithic product
Range Of Product:
Harmony XB7
Circularity Profile:
ENVEOLI1805012EN
Terminals Description Iso N°1:
(13-14)NO || (21-22)NC
Standards:
UL 508 || JIS C8201-5-1 || EN/IEC 60947-1 || CSA C22.2 No 14 || EN/IEC 60947-5-1 || JIS C8201-1
Short-Circuit Protection:
4 A cartridge fuse gG EN/IEC 60947-5-1
China Rohs Regulation:
X
Warranty:
18 months
Ambient Air Temperature For Storage:
-40-70 °C
Cad Overall Depth:
51.5 mm
Mounting Diameter:
22 mm
Cad Overall Width:
29 mm
Shock Resistance:
50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end EN/IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end EN/IEC 60947-1
[Ui] Rated Insulation Voltage:
250 V 3)EN/IEC 60947-1
Mechanical Durability:
1000000 cycles
Sustainable Offer Status:
Green Premium product
Fixing Mode:
fixing nut beneath head 2-2.4 N.m
Net Weight:
0.021 kg
Electrical Reliability:
λ <= 10exp(-6) 17 V, 5 mA EN/IEC 60947-5-4
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Device Short Name:
XB7
Shape Of Screw Head:
cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Protective Treatment:
TH
Shape Of Signaling Unit Head:
round
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Contacts Type And Composition:
1 NO + 1 NC
Brochure:
View
Datasheet:
View
