Schneider Electric XB7NH21 Pb - Latch, Black - 1No Pack of 10
Schneider Electric
$215.50
(No reviews yet)
Write a Review
Write a Review
Schneider Electric

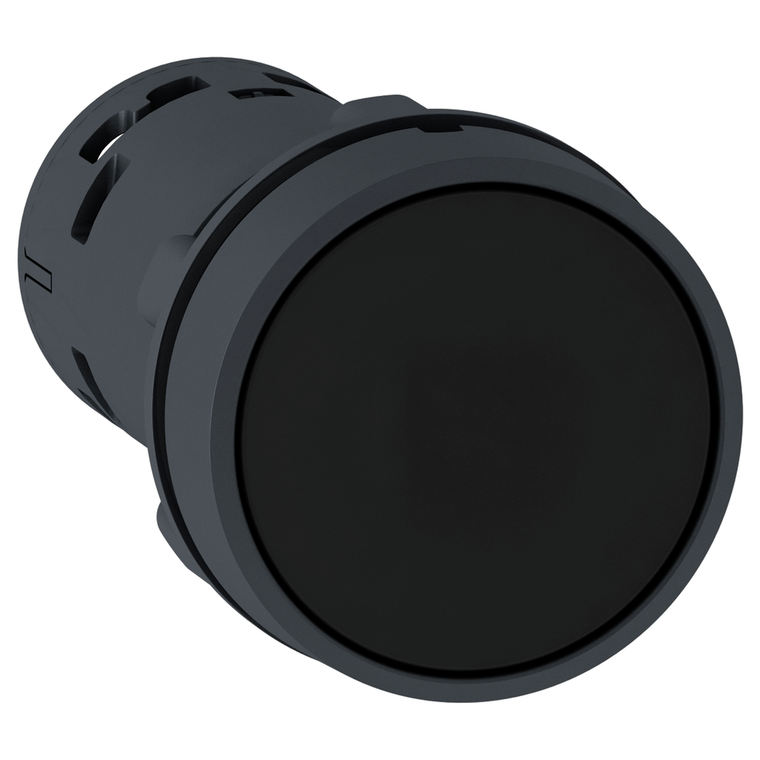

Schneider Electric XB7NH21 Pb - Latch, Black - 1No Pack of 10
This Harmony XB7, flush monolithic black push button operates with latched push to release mechanism and uses screw-clamp terminals. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. Its schematic is clearly distinguishable thanks to clear colors and markings, minimizing errors during initial wiring and later maintenance operations. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
- Overvoltage Category:
- class II IEC 61140
- Environmental Disclosure:
- ENVPEP1805012EN
- Contact Operation:
- slow-break
- Short-Circuit Protection:
- 4 A cartridge fuse gG IEC 60947-5-1
- Mounting Diameter:
- 22 mm
- Device Presentation:
- monolithic product
- Net Weight:
- 0.021 kg
- Electrical Reliability:
- λ <= 10exp(-6) 17 V, 5 mA IEC 60947-5-4
- Circularity Profile:
- ENVEOLI1805012EN
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Sale Per Indivisible Quantity:
- 10
- Fixing Mode:
- fixing nut beneath head 2-2.4 N.m
- Mechanical Durability:
- 300000 cycles
- Protective Treatment:
- TH
- Marking:
- unmarked
- Ip Degree Of Protection:
- IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
- Shape Of Signaling Unit Head:
- round
- Fixing Center:
- >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
- [Ie] Rated Operational Current:
- 0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
- Mercury Free:
- Yes
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV IEC 60947-1
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Standards:
- IEC 60947-1 || IEC 60947-5-1 || UL 508 || CSA C22.2 No 14 || JIS C8201-5-1 || JIS C8201-1
- Contacts Type And Composition:
- 1 NO
- Positive Opening:
- with NC contact IEC 60947-5-1 appendix K
- Range Of Product:
- Harmony XB7
- Rohs Exemption Information:
- Yes
- Device Mounting:
- fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1
- Nema Degree Of Protection:
- NEMA 12 UL 50 E || NEMA 3 UL 50 E
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- China Rohs Regulation:
- X
- Ambient Air Temperature For Storage:
- -40-70 °C
- Electrical Durability:
- 1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
- Ambient Air Temperature For Operation:
- -25-70 °C
- Shape Of Screw Head:
- cross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat à 4 mm || slotted flat à 5.5 mm
- Cad Overall Height:
- 29 mm
- Toxic Heavy Metal Free:
- Yes
- Cad Overall Width:
- 29 mm
- Operator Profile:
- black flush
- Type Of Operator:
- push and push-to-release
- Shock Resistance:
- 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27
- [Ui] Rated Insulation Voltage:
- 250 V 3)IEC 60947-1
- Device Short Name:
- XB7
- Product Certifications:
- GOST || CCC
- Product Or Component Type:
- push-button
- Warranty:
- 18 months
- Tightening Torque:
- 0.8-1.2 N.m IEC 60947-1
- Terminals Description Iso N°1:
- (13-14)NO
- Sustainable Offer Status:
- Green Premium product
- Cad Overall Depth:
- 51.5 mm
- Connections - Terminals:
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
