$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies

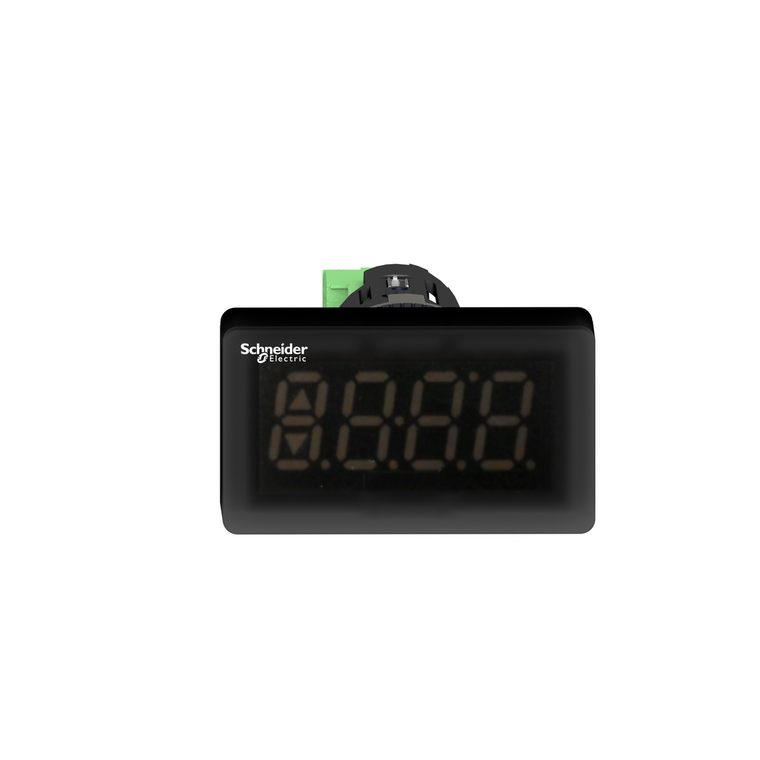

This display module provides a versatile interface for your machines It is impact resistant (strength), dust resistant (strength), water resistant (strength), corrosion resistant (strength), and vibration resistant (strength) thanks to its IP65, making it ideal for operation in harsh (heavy) environments
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Brightness:
- fixed
- Connections - Terminals:
- spring terminals, 1 x 0.2...1 mm² AWG 24...AWG 17)
- Width:
- 51.5 mm
- Eu Rohs Directive:
- Under investigation
- Display Digits:
- 4 - 14 mm
- Product Or Component Type:
- display module
- Analogue Input Range:
- 4...20 mA DC
- Discrete Output Voltage:
- 30 V DC
- Mounting Diameter:
- 22.5 mm
- Maximum Voltage Drop:
- 6 V
- Depth:
- 78.2 mm
- Range Of Product:
- Harmony XB5
- Vibration Resistance:
- 5 gn 2-500 Hz)IEC 60068-2-6
- Temperature Drift:
- 50 ppm/°C
- Tightening Torque:
- 1.3 N.m +/- 0.2 N.m || 11.5 lb.in +/- 1.8 lb.in
- Ambient Air Temperature For Operation:
- -20-60 °C
- Net Weight:
- 0.032 kg
- Ambient Air Temperature For Storage:
- -20-85 °C
- Display Type:
- 7 segments LED
- Housing Material:
- plastic
- Solid State Output Type:
- 2 x power MOSFET
- Discrete Output Current:
- 0.5 A
- Height:
- 29.5 mm
- Standards:
- IEC 61326-1
- Accuracy:
- +/- 0.15 % of the measuring range + 1 digit
- Ip Degree Of Protection:
- IP65 IEC 60529 front panel)
- Display Colour:
- red
- Counting Capacity:
- -999...9999
- Flame Retardance:
- UL94-V1
- Catalog:
- View
- Datasheet:
- View
- QN-QUOTE-REQUEST:
- true
