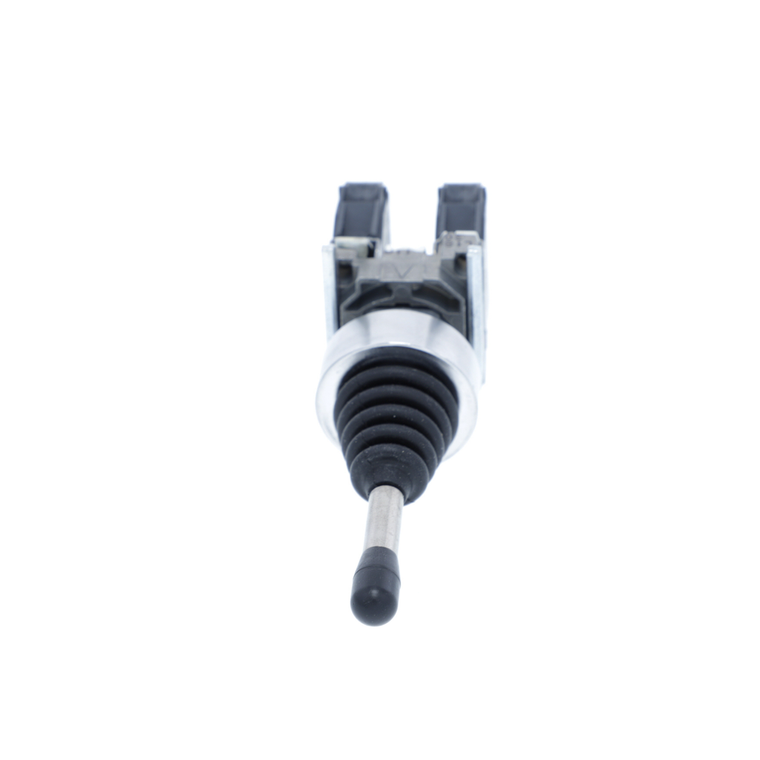

Schneider Electric XD4PA24 Joystick

Schneider Electric XD4PA24 Joystick

Schneider Electric
SKU:
XD4PA24
|
UPC:
3389110887433
Availability:
Contact us to confirm availability and lead times.
$316.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XB4, joystick controller operates with 4-direction return-to-center mechanism. It has 4 x NO (1 per direction) contacts and a chromium-plated metal bezel. This joystick provides a versatile and intuitive interface for controlling your machines. It is easily installed into a standard 22mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement.
Additional Information
Shape Of Screw Head:
cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
China Rohs Regulation:
X
Shape Of Signaling Unit Head:
round
Electrical Durability:
1000000 cycles, AC-15, 2 A 230 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 3 A 120 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 4 A 24 V 3600 cyc/h 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, DC-13,
Product Certifications:
UL Listed || LROS (Lloyds register of shipping) || CSA || BV || DNV || GL
Range Of Product:
Harmony XDA
Contacts Type And Composition:
1 NO
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
[Ie] Rated Operational Current:
0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1
Mounting Diameter:
22 mm
Tightening Torque:
0.8-1.2 N.m IEC 60947-1
[Ui] Rated Insulation Voltage:
600 V 3)IEC 60947-1
Standards:
IEC 60947-5-1 || UL 508 || IEC 60947-5-5 || CSA C22.2 No 14 || JIS C8201-5-1 || IEC 60947-1 || IEC 60947-5-4 || JIS C8201-1
Nema Degree Of Protection:
NEMA 13 || NEMA 4X
Connections - Terminals:
screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, >= 1 x 0.22 mm² without cable end IEC 60947-1
Electrical Shock Protection Class:
class I IEC 60536
Device Short Name:
XD4
Operator Direction Information:
4 directions
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ambient Air Temperature For Storage:
-40-70 °C
Fixing Collar Material:
zamak
Ik Degree Of Protection:
IK03 IEC 50102
Ambient Air Temperature For Operation:
-25-70 °C
Positive Opening:
without
Contacts Material:
silver alloy (Ag/Ni)
Short-Circuit Protection:
10 A cartridge fuse gG IEC 60947-5-1
Contacts Usage:
standard
Mercury Free:
Yes
Notch Per Direction:
45292
Bezel Material:
chromium plated metal
Shock Resistance:
30 gn 18 ms) half sine wave acceleration IEC 60068-2-27 || 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Type Of Operator:
spring return to 0 position, long operating shaft 54 mm
Sale Per Indivisible Quantity:
1
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Net Weight:
0.133 kg
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Vibration Resistance:
5 gn 2-500 Hz)IEC 60068-2-6
Resistance To High Pressure Washer:
7000000 Pa 55 °C 0.1 m
Operator Position Information:
5 positions
Mechanical Durability:
1000000 cycles
Device Presentation:
complete product
Protective Treatment:
TH
Rohs Exemption Information:
Yes
Electrical Reliability:
λ < 10exp(-6) 5 V, 1 mA in clean environment IEC 60947-5-4 || λ < 10exp(-8) 17 V, 5 mA in clean environment IEC 60947-5-4
Contact Operation:
slow-break
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Product Or Component Type:
joystick controller
Ip Degree Of Protection:
IP66 IEC 60529
Warranty:
18 months
[Ith] Conventional Free Air Thermal Current:
10 A IEC 60947-5-1
