Schneider Electric

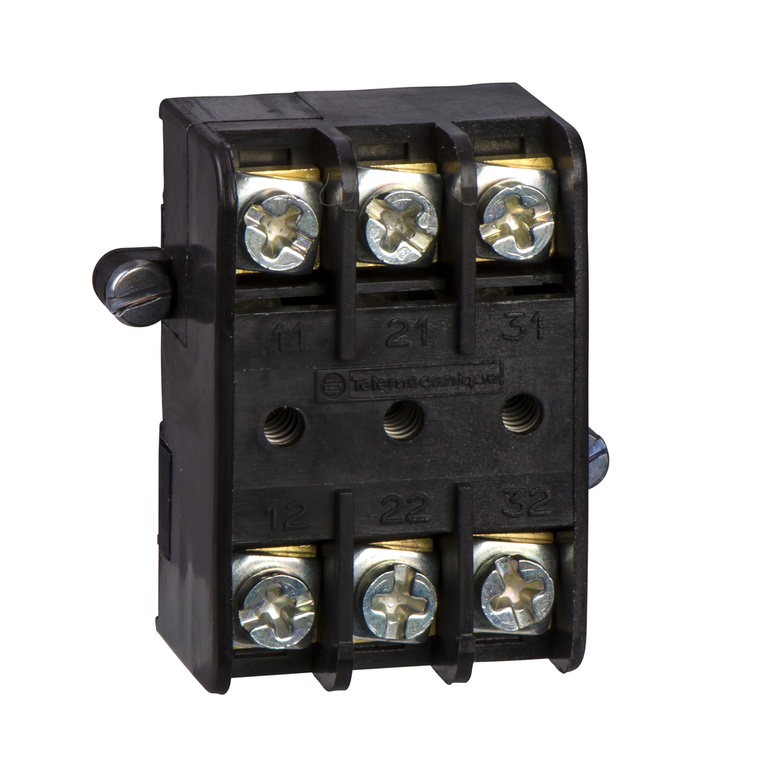

Schneider Electric XENT1991 Limit Switch Contact

(No reviews yet) Write a Review

Write a Review

Schneider Electric

Schneider Electric XENT1991 Limit Switch Contact

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XENT1991

UPC:

3389110609103

MPN:

Condition:

New

Net Weight:

0.04 kg

Warranty:

18 months

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Standards:

EN/IEC 60947-5-1 || UL 508 || CSA C22.2 No 14

Contact Operation:

slow-break

Component Name:

XENT

Terminals Description Iso N°1:

(31-32)NC || (11-12)NC || (21-22)NC

Contact Block Application:

emergency stop push-button

Vibration Resistance:

15 gn 10-500 Hz)IEC 60068-2-6

Product Compatibility:

XACD

Toxic Heavy Metal Free:

Yes

Rohs Exemption Information:

Yes

Product Or Component Type:

contact block

Ambient Air Temperature For Operation:

-25-70 °C

Electrical Circuit Type:

control circuit || power circuit

California Proposition 65:

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr

Range Of Product:

Harmony XAC

Mercury Free:

Yes

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 60947-1

China Rohs Regulation:

X

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Shock Resistance:

70 gn IEC 60068-2-27

Connections - Terminals:

screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end

[Ithe] Conventional Enclosed Thermal Current:

0.416666666666667

Contact Block Type:

single

Rated Operational Power In W:

3000 W AC-23B 400 V

Contacts Type And Composition:

3 NC

Ambient Air Temperature For Storage:

-40-70 °C

[Ui] Rated Insulation Voltage:

400 V 3)IEC 60947-1

Reach Free Of Svhc:

Yes

Mechanical Durability:

3000000 cycles

Type Of Operator:

spring return

Short-Circuit Protection:

6 A fuse protection cartridge aM

Overvoltage Category:

class II IEC 61140

Catalog:

View

Datasheet:

View
