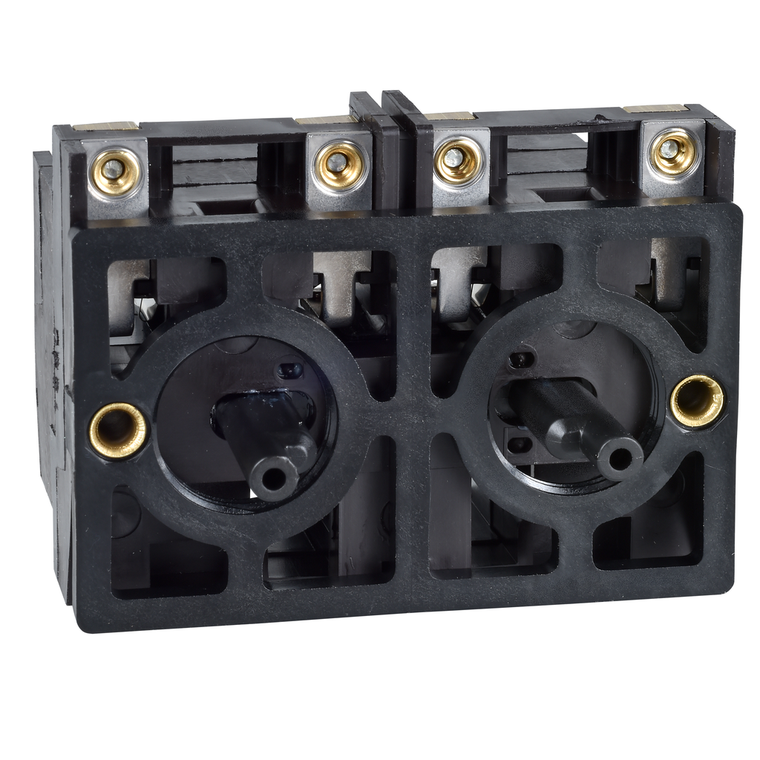

Schneider Electric XESD1291 Spring Return Contact Block 2 No And 1 O

Schneider Electric XESD1291 Spring Return Contact Block 2 No And 1 O

Schneider Electric
SKU:
XESD1291
|
UPC:
3389110641127
Availability:
Contact us to confirm availability and lead times.
$276.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This Harmony XAC, contact block uses screw-clamp terminals and has 2 x NO + 1 changeover contact SPDT single pole double throw. This contact block allows fast and easy replacement and configuration of your push buttons and selector switches. It is easily installed and replaced on XACM and XACB pendant control stations and connects to control circuits with simple screw-clamp connections. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. It has clear labelling of the contact wiring and terminals names on the side of the block. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine.
Additional Information
[Ithe] Conventional Enclosed Thermal Current:
0
Toxic Heavy Metal Free:
Yes
Warranty:
18 months
Terminal Identifier:
(13-14)NO || (11-12)NC
California Proposition 65:
WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other repr
Rated Operational Power In W:
2200 W AC-3 240 V IEC 60947-3 appendix A || 2200 W AC-4 400 V IEC 60947-3 appendix A
Electrical Circuit Type:
power circuit
Contact Block Application:
2-speed
Contact Operation:
snap action || staggered
Contacts Type And Composition:
2 NO + 1 C/O
Rohs Exemption Information:
Yes
Mounting Of Block:
front mounting
Type Of Operator:
2 spring return
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Terminals Description Iso N°2:
B || (43-44)NO || (61-62-64)OC || (33-34)NO
Shock Resistance:
100 gn IEC 60068-2-27
Rated Power In Hp:
2 hp 240 V, CSA || 3 hp 600 V, CSA || 5 hp 400 V, CSA
Ambient Air Temperature For Operation:
-25-70 °C
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Contact Block Type:
double
Range Of Product:
Harmony XAC
Short-Circuit Protection:
10 A fuse protection cartridge aM
Electrical Durability:
300000 cycles AC-3, 2200 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 300000 cycles AC-3, 2200 W 400 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 300000 cycles AC-4, 2200 W 240 V 10 cyc/mn 0.4 IEC 60947-3 appendix A || 300000 cycles AC-4, 2200 W 400
Vibration Resistance:
15 gn 10-500 Hz)IEC 60068-2-6
[Uimp] Rated Impulse Withstand Voltage:
6 kV IEC 60947-1
Product Compatibility:
XACB
Component Name:
XESD
Mercury Free:
Yes
Electrical Shock Protection Class:
class II IEC 61140
Poles Description:
2-pole
Net Weight:
0.19 kg
Mechanical Durability:
500000 cycles || 1000000 cycles
Product Or Component Type:
contact block
China Rohs Regulation:
X
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc:
Yes
Operating Force:
17 N
Connections - Terminals:
screw clamp terminals, 1 x 2.5 mm² with or without cable end || screw clamp terminals, 2 x 1.5 mm² with or without cable end
Mechanical Interlocking:
with mechanical interlocking
Standards:
IEC 60947-3 || CSA C22.2 No 14 || EN 60947-3
Terminals Description Iso N°1:
(13-14)NO || B || (23-24)NO || (51-52-54)OC
[Ui] Rated Insulation Voltage:
600 VCSA
Ambient Air Temperature For Storage:
-40-70 °C
Horizontal Fixing Centres:
40 mm
