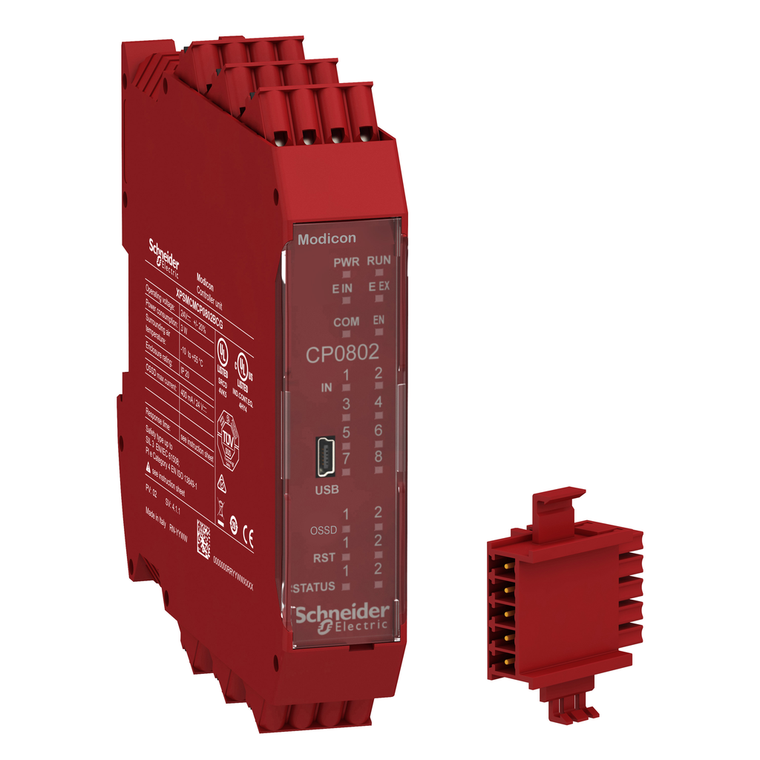

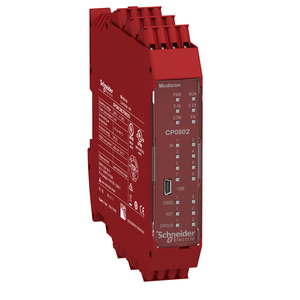

Schneider Electric XPSMCMCP0802BCG Controller 8 Input 2 Output Spring Termi

(No reviews yet) Write a Review

Write a Review

Schneider Electric XPSMCMCP0802BCG Controller 8 Input 2 Output Spring Termi

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XPSMCMCP0802BCG

UPC:

3.60648E+12

MPN:

Condition:

New

Number Of Inputs:

8 digital input connection || 2 digital interlock start/restart or external device monitoring

Quality Labels:

CE

Maximum Number Of I/O Expansion Module:

14 128 input || 14 16 output

Electromagnetic Compatibility:

electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test lev

Local Signalling:

1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 1 LED orange COM communication || 1 LED blue EN master enable || 8 LEDs yellow IN input status || 2 LEDs green/red OUT outpu

Mercury Free:

Yes

Number Of Outputs:

2 safety outputs OSSD contactor/drive connection || 4 test line control outputs || 2 configurable diagnostic connection

Product Certifications:

TÜV || RCM || cULus

Connections - Terminals:

1 spring terminals, removable terminal block || 2 spring terminals, removable terminal block

Shock Resistance:

10 gn 16 ms) 1000 shocks on each axis IEC 61496-1

Mounting Support:

omega 35 mm DIN rail EN 50022

Inductive Load:

30 mH

Ambient Air Temperature For Storage:

-20-85 °C

Discrete Input Current:

400 mA

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Safety Reliability Data:

PFHd = 6.06E-9 1/h || DC > 99 % || MTTFd < 100 years high

Load Capacitance:

0.82 µF

Function Of Module:

emergency stop ISO 13850 || guard monitoring EN/ISO 14119 || enabling switch monitoring IEC 60947-5-1 || light curtain monitoring IEC 61496-1 || foot switch monitoring IEC 60947-5-1 || light curtain monitoring EN/ISO 14119 || switch monitoring EN 574

Kit Composition:

1 safety controller CPU || 1 backplane expansion connector

Range Of Product:

Modicon Safety automation

Depth:

114.5 mm

Cable Cross Section:

0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Vibration Resistance:

+/-0.35 mm 10-55 Hz)IEC 61496-1

Service Life:

20 year(s)

Discrete Output Type:

PNP

Electrical Connection:

spring terminal

Relative Humidity:

10-95 %

Power Dissipation In W:

3 W

Integrated Connection Type:

backplane expansion bus || USB 2.0 port

Device Short Name:

XPSMCM

Discrete Input Type:

PNP || safety input

Overvoltage Category:

II

[Us] Rated Supply Voltage:

24 V - 20...20 % DC

Safety Level:

can reach category 4 ISO 13849-1 || can reach PL = e ISO 13849-1 || type 4 IEC 61496-1 || SILCL 3 IEC 62061

Reach Free Of Svhc:

Yes

Synchronisation Time Between Inputs:

< 0.5 ms

Product Or Component Type:

modular safety controller CPU kit

Standards:

IEC 61496-1 || ISO 13849-1 || IEC 61508 || IEC 61800-5-1 || IEC 62061

Ip Degree Of Protection:

IP20

Pvc Free:

Yes

Width:

22.5 mm

Discrete Input Voltage:

24 V

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Discrete Output Current:

400 mA

Data Storage Equipment:

SD card optional)

Pollution Degree:

2

Ambient Air Temperature For Operation:

-10-55 °C

China Rohs Regulation:

X

Height:

99 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Insulation:

250 V AC between power supply and housing IEC 61800-5-1

Rohs Exemption Information:

Yes

Net Weight:

0.26 kg

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 61800-5-1
