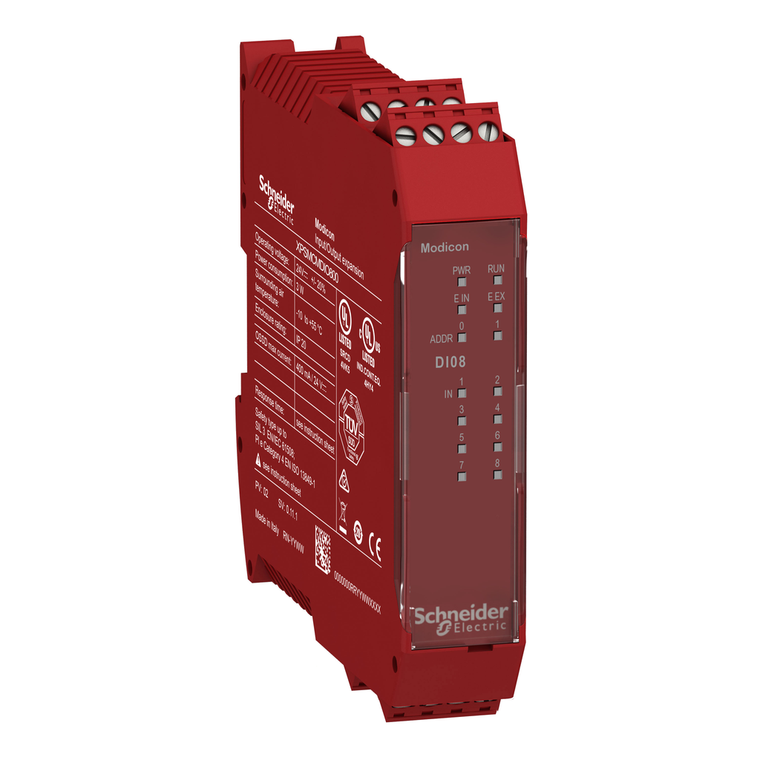

Schneider Electric XPSMCMDI0800 8 Input Expansion Screw Term

(No reviews yet) Write a Review

Write a Review

Schneider Electric XPSMCMDI0800 8 Input Expansion Screw Term

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XPSMCMDI0800

UPC:

3.60648E+12

MPN:

Condition:

New

Integrated Connection Type:

backplane expansion bus

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Discrete Input Voltage:

24 V DC

Product Certifications:

RCM || cULus || TÜV

Number Of Outputs:

4 test line control

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 61800-5-1

Standards:

IEC 62061 || IEC 61508 || ISO 13849-1 || IEC 61800-5-1

Electromagnetic Compatibility:

electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test lev

Mounting Support:

omega 35 mm DIN rail EN 50022

Height:

99 mm

China Rohs Regulation:

X

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ip Degree Of Protection:

IP20 enclosure)

Power Consumption In W:

3 W

Pvc Free:

Yes

Pollution Degree:

2

Device Short Name:

XPSMCM

Relative Humidity:

10-95 %

Environmental Disclosure:

ENVPEP1409010EN

Depth:

22.5 mm

Insulation:

250 V AC between power supply and housing IEC 61800-5-1

Product Or Component Type:

safe input expansion module

Cable Cross Section:

0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end,

Range Of Product:

Preventa Safety automation

Connections - Terminals:

2 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block

Number Of Terminal Blocks:

4

Mercury Free:

Yes

Power Dissipation In W:

3 W

Shock Resistance:

10 gn 16 ms) 1000 shocks on each axis IEC 61496-1

Net Weight:

0.23 kg

Discrete Input Type:

PNP

Sustainable Offer Status:

Green Premium product

Vibration Resistance:

+/-0.35 mm 10-55 Hz)IEC 61496-1

Safety Level:

can reach category 4 ISO 13849-1 || can reach PL = e ISO 13849-1 || can reach SIL 3 IEC 61508 || SILCL 3 IEC 62061

Number Of Inputs:

8 digital

Discrete Output Type:

PNP

Service Life:

20 year(s)

[Us] Rated Supply Voltage:

24 V - 20...20 % DC

Function Of Module:

monitoring safety detection discrete input || monitoring safety dialogue discrete input

Local Signalling:

1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 8 LEDs yellow IN input status

Electrical Connection:

screw terminal

Width:

114.5 mm

Ambient Air Temperature For Operation:

-10-55 °C

Safety Reliability Data:

PFHd = 5.75E-9 1/h || DC > 99 % || MTTFd < 100 years high

Ambient Air Temperature For Storage:

-20-85 °C

Reach Free Of Svhc:

Yes

Circularity Profile:

ENVEOLI1409010EN

Quality Labels:

CE

Overvoltage Category:

II

Rohs Exemption Information:

Yes

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
