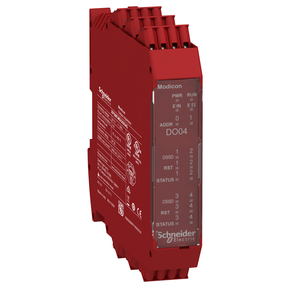

Schneider Electric XPSMCMDO0002G 2 Do Pairs, Expansion Spring Term

(No reviews yet) Write a Review

Write a Review

Schneider Electric XPSMCMDO0002G 2 Do Pairs, Expansion Spring Term

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XPSMCMDO0002G

UPC:

3606480748639

MPN:

Condition:

New

China Rohs Regulation:

X

Connections - Terminals:

1 spring clamp terminals, removable terminal block || 2 spring clamp terminals, removable terminal block

Sustainable Offer Status:

Green Premium product

Electromagnetic Compatibility:

electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test lev

Reach Regulation:

Free of Substances of Very High Concern above the threshold

Discrete Input Type:

isolated

Service Life:

20 year(s)

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Shock Resistance:

10 gn 16 ms) 1000 shocks on each axis IEC 61496-1

Pollution Degree:

2

Rohs Exemption Information:

Yes

Number Of Terminal Blocks:

4

Local Signalling:

1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 2 LEDs green/red OUT output status || 2 LEDs yellow RST restart signal || 2 LEDs yellow S

Number Of Inputs:

2 digital external device monitoring

Mercury Free:

Yes

Height:

99 mm

Quality Labels:

CE

Discrete Output Current:

400 mA || 100 mA

Mounting Support:

omega 35 mm DIN rail EN 50022

Relative Humidity:

10-95 %

Depth:

22.5 mm

Power Consumption In W:

3 W

Discrete Output Type:

PNP

Insulation:

250 V AC between power supply and housing IEC 61800-5-1

Safety Reliability Data:

DC > 99 % || MTTFd < 100 years high || PFHd = 3.16E-9 1/h

[Us] Rated Supply Voltage:

24 V - 20...20 % DC

Device Short Name:

XPSMCM

Discrete Input Voltage:

24 V DC

Load Type:

resistive load

Power Dissipation In W:

3 W

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Function Of Module:

monitoring safety actuators discrete output

Width:

114.5 mm

Number Of Outputs:

2 safety outputs OSSD contactor/drive connection || 2 configurable diagnostic connection

Product Or Component Type:

safe output expansion module

[Uimp] Rated Impulse Withstand Voltage:

4 kV IEC 61800-5-1

Overvoltage Category:

II

Reach Free Of Svhc:

Yes

Pvc Free:

Yes

Standards:

IEC 62061 || IEC 61508 || ISO 13849-1 || IEC 61800-5-1

Ip Degree Of Protection:

IP20 enclosure)

Output Load:

60 Ohm

Range Of Product:

Preventa Safety automation

Product Certifications:

cULus || RCM || TÜV

Circularity Profile:

ENVEOLI1409010EN

Safety Level:

can reach category 4 ISO 13849-1 || can reach PL = e ISO 13849-1 || can reach SIL 3 IEC 61508 || SILCL 3 IEC 62061

Net Weight:

0.23 kg

Ambient Air Temperature For Storage:

-20-85 °C

Cable Cross Section:

0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel || 0.2-2.5 mm² - AWG 24...AWG 14 solid without

Environmental Disclosure:

ENVPEP1409010EN

Vibration Resistance:

+/-0.35 mm 10-55 Hz)IEC 61496-1

Ambient Air Temperature For Operation:

-10-55 °C

Electrical Connection:

spring terminal

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Discrete Output Voltage:

24 V DC

Integrated Connection Type:

backplane expansion bus
