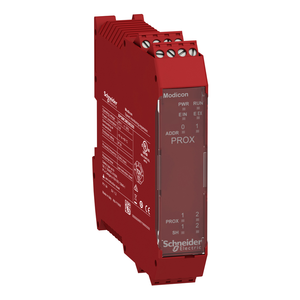

Schneider Electric XPSMCMEN0200G Speed Mon. 2 Prox. Exp. Spring Term

(No reviews yet) Write a Review
SKU:
XPSMCMEN0200G
UPC:
3606480748929
Condition:
New
[Us] Rated Supply Voltage:
24 V - 20...20 % DC
China Rohs Regulation:
X
Ip Degree Of Protection:
IP20 enclosure)
Relative Humidity:
10-95 %
Quality Labels:
CE
Electrical Connection:
spring terminal
Reach Free Of Svhc:
Yes
Overvoltage Category:
II
Depth:
22.5 mm
Maximum Input Frequency:
5 kHz sensor
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Power Consumption In W:
3 W
Number Of Terminal Blocks:
4
Mercury Free:
Yes
Product Certifications:
TÜV || RCM || cULus
Safety Level:
can reach category 4 ISO 13849-1 || can reach PL = e ISO 13849-1 || type 4 IEC 61496-1 || SILCL 3 IEC 62061
Mounting Support:
omega 35 mm DIN rail EN 50022
Ambient Air Temperature For Storage:
-20-85 °C
Electromagnetic Compatibility:
electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test lev
Function Of Module:
speed monitoring
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 61800-5
Rohs Exemption Information:
Yes
Discrete Input Voltage:
24 V DC
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width:
114.5 mm
Power Dissipation In W:
3 W
Standards:
ISO 13849-1 || IEC 61508 || IEC 62061 || IEC 61800-5-1 || IEC 61496-1
Environmental Disclosure:
ENVPEP1409010EN
Sustainable Offer Status:
Green Premium product
Vibration Resistance:
+/-0.35 mm 10-55 Hz)IEC 61496-1
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Service Life:
20 year(s)
Range Of Product:
Preventa Safety automation
Connections - Terminals:
1 spring clamp terminals, removable terminal block || 2 spring clamp terminals, removable terminal block
Sensor Type:
inductive proximity sensor
Shock Resistance:
10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Device Short Name:
XPSMCM
Insulation:
250 V AC between power supply and housing IEC 61800-5-1
Product Or Component Type:
safe speed monitoring module
Integrated Connection Type:
backplane expansion bus
Pollution Degree:
2
Pvc Free:
Yes
Ambient Air Temperature For Operation:
-10-55 °C
Circularity Profile:
ENVEOLI1409010EN
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Net Weight:
0.23 kg
Local Signalling:
1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 2 LEDs yellow PROX proximity sensors connection status || 2 LEDs yellow SH speed monitori
Height:
99 mm
Cable Cross Section:
0.2-2.5 mm² flexible without cable end || 0.2-2.5 mm² solid without cable end || 0.25-2.5 mm² flexible with cable end, with bezel || 0.25-2.5 mm² flexible with cable end, without bezel || 0.5-1 mm² flexible with cable end, with double bezel
Catalog:
View
Datasheet:
View
$885.00

Description

This Modicon MCM safe speed monitoring module has 2 inputs for proximity switches (with terminal blocks for wiring) and is fitted with captive spring clamp terminals. It is designed to monitor zero speed control, max speed (limited speed), speed range and direction. It has a rated supply voltage of 24V DC. It offers up to four logically selectable limited speed thresholds (freely configurable via SoSafe Configurable software) for each logical intput (axis), and a maximum input frequency of 500kHz (for encoders) and 5kHz for proximity sensors. It completes your safety CPU with safe-speed monitoring function, ideal for cutting machines like band-saw, circular saw and grinding machines. This module figures LEDs on its front face, displaying the status (power supply, reset, internal or external errors, node address, encoder or proximity sensors connection status, speed monitoring status). The safe speed monitoring module is connected to the safety controller via the backplane expansion connector. It weighs 0.23kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. This module can reach such safety levels as category 4 conforming to EN/ISO 13849-1, PL = e conforming to EN/ISO 13849-1, Type 4 conforming to EN/IEC 61496-1, and SILCL 3 conforming to IEC 62061. The modular safety controllers Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The safe speed monitoring module instals on Omega 35mm DIN rail conforming to EN 50022, and is connected to the safety controller via the backplane expansion connector. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
