Schneider Electric XPSMCMEN0200SC Speed Mon. 2 Sin/Cos Exp. Screw Term

(No reviews yet) Write a Review
SKU:
XPSMCMEN0200SC
UPC:
3606480748769
Condition:
New
Power Dissipation In W:
3 W
Electromagnetic Compatibility:
electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2 || electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2 || susceptibility to electromagnetic fields - test lev
Connections - Terminals:
2 captive screw clamp terminals, removable terminal block || 1 captive screw clamp terminals, removable terminal block
Service Life:
20 year(s)
Quality Labels:
CE
Reach Regulation:
Free of Substances of Very High Concern above the threshold
Discrete Input Voltage:
24 V DC
Relative Humidity:
10-95 %
Rohs Exemption Information:
Yes
Mounting Support:
omega 35 mm DIN rail EN 50022
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Electrical Connection:
screw terminal
Range Of Product:
Preventa Safety automation
Power Consumption In W:
3 W
China Rohs Regulation:
X
Insulation:
250 V AC between power supply and housing IEC 61800-5-1
Ambient Air Temperature For Storage:
-20-85 °C
Reach Free Of Svhc:
Yes
Device Short Name:
XPSMCM
Sensor Type:
inductive proximity sensor
Standards:
IEC 61508 || ISO 13849-1 || IEC 61496-1 || IEC 61800-5-1 || IEC 62061
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Cable Cross Section:
0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end || 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel || 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, wit
Environmental Disclosure:
ENVPEP1409010EN
Mercury Free:
Yes
Number Of Terminal Blocks:
4
Sustainable Offer Status:
Green Premium product
Pollution Degree:
2
Circularity Profile:
ENVEOLI1409010EN
Safety Level:
can reach category 4 ISO 13849-1 || can reach PL = e ISO 13849-1 || type 4 IEC 61496-1 || SILCL 3 IEC 62061
[Us] Rated Supply Voltage:
24 V - 20...20 % DC
Maximum Input Frequency:
5 kHz sensor || 500 kHz encoder SinCos
Local Signalling:
1 LED green PWR power ON || 1 LED green RUN RUN (status) || 1 LED red E IN internal error || 1 LED red E EX external error || 2 LEDs orange ADDR node address || 2 LEDs yellow PROX proximity sensors connection status || 2 LEDs yellow SH speed monitori
Product Certifications:
RCM || cULus || TÜV
Shock Resistance:
10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
Overvoltage Category:
II
Vibration Resistance:
+/-0.35 mm 10-55 Hz)IEC 61496-1
Height:
99 mm
Depth:
22.5 mm
Function Of Module:
speed monitoring
[Uimp] Rated Impulse Withstand Voltage:
4 kV IEC 61800-5
Pvc Free:
Yes
Ambient Air Temperature For Operation:
-10-55 °C
Ip Degree Of Protection:
IP20 enclosure)
Product Or Component Type:
safe speed monitoring module
Width:
114.5 mm
Weee:
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Integrated Connection Type:
backplane expansion bus
Net Weight:
0.3 kg
Electrical Connection:
1 connector RJ45 EIA/TIA-568-A
Catalog:
View
Datasheet:
View
$960.00

Description

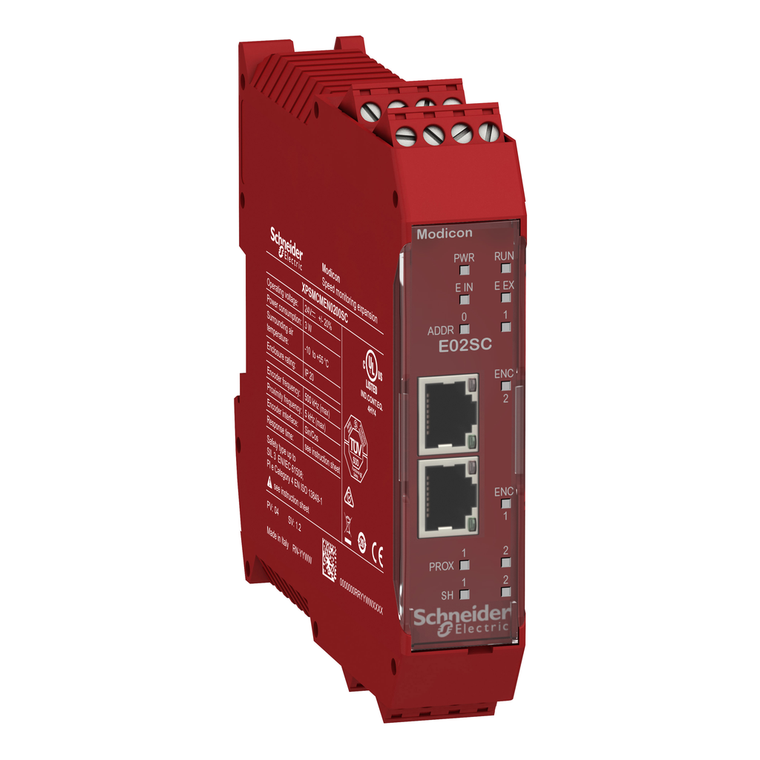

This Modicon MCM safe speed monitoring module has 2 Sin/Cos encoder inputs (with RJ45 connectors) and 2 proximity sensor inputs (connection via terminal) and is fitted with captive screw clamp terminals. It is designed to monitor zero speed control, max speed (limited speed), speed range and direction. It has a rated supply voltage of 24V DC. It offers up to four logically selectable limited speed thresholds (freely configurable via SoSafe Configurable software) for each logical intput (axis), and a maximum input frequency of 500kHz (for encoders) and 5kHz for proximity sensors. It completes your safety CPU with safe-speed monitoring function, ideal for cutting machines like band-saw, circular saw and grinding machines. This module figures LEDs on its front face, displaying the status (power supply, reset, internal or external errors, node address, encoder or proximity sensors connection status, speed monitoring status). The safe speed monitoring module is connected to the safety controller via the backplane expansion connector. It weighs 0.3kg. Its dimension are 22.5mm (Depth), 99mm (Height) and 114.5mm (Width). Its housing is red. It is powered with 24 VDC. This module can reach such safety levels as category 4 conforming to EN/ISO 13849-1, PL = e conforming to EN/ISO 13849-1, Type 4 conforming to EN/IEC 61496-1, and SILCL 3 conforming to IEC 62061. The modular safety controllers Modicon MCM are certified by TüV SÜD meeting the industrial safety standards of Category 4, PL e according to EN/ISO 13849-1 and SILCL 3 according to IEC/EN 61508 and IEC/EN 60261. Compatible accessories for Modicon MCM module are a memory card and the backplane connector. The safe speed monitoring module instals on Omega 35mm DIN rail conforming to EN 50022, and is connected to the safety controller via the backplane expansion connector. The Modicon MCM modular safety controller system provide flexibility and scalability from 8 inputs, 2 dual/4 single channel outputs up to 128 inputs, 16 dual/32 single channel outputs, up to 32 or 48 diagnostic status outputs. Modicon MCM modular safety controller system are designed to monitor multiple safety functions on and around a machine to minimise the risk of people accessing the dangerous moving parts of the machine.
