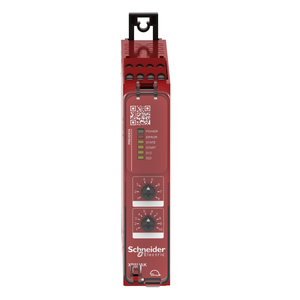

Schneider Electric XPSUAK32AP Safety Module Uak Cat.4 48-230V Screw

(No reviews yet) Write a Review

Write a Review

Schneider Electric XPSUAK32AP Safety Module Uak Cat.4 48-230V Screw

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XPSUAK32AP

UPC:

3606489601676

MPN:

Condition:

New

Mounting Support:

35 mm symmetrical DIN rail

Safety Module Name:

XPSUAK

Power Consumption In Va:

6.5 VA 240 V AC 50/60 Hz

Circularity Profile:

ENVEOLI1811003EN

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Safety Module Application:

monitoring antivalent contacts || for emergency stop, guard and light curtain monitoring || monitoring of pressure-sensitive 4-wire protective devices

[Uimp] Rated Impulse Withstand Voltage:

4 kV II IEC 60947-1

Associated Fuse Rating:

10 A gG NO relay output circuit IEC 60947-1

Mercury Free:

Yes

Safety Level:

can reach PL e/category 4 for normally open relay contact ISO 13849-1 || can reach SILCL 3 for normally open relay contact IEC 62061 || can reach SIL 3 for normally open relay contact IEC 61508 || can reach PL c/category 1 for normally closed relay c

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Minimum Output Current:

10 mA relay output

Product Certifications:

TÜV || cULus

Relative Humidity:

5-95 % non-condensing

Maximum Line Resistance:

500 Ohm

[Ith] Conventional Free Air Thermal Current:

0.333333333333333

Number Of Outputs:

3 on/off configurable pulsed output

Standards:

IEC 60947-5-1 || IEC 61508-1 functional safety standard || IEC 61508-2 functional safety standard || IEC 61508-3 functional safety standard || IEC 61508-4 functional safety standard || IEC 61508-5 functional safety standard || IEC 61508-6 functional

Net Weight:

0.200 kg

Synchronisation Time Between Inputs:

0.5 s || 2 s || 4 s

Environmental Disclosure:

ENVPEP1811003EN

[Ie] Rated Operational Current:

5 A AC-1 for normally open relay contact || 3 A AC-15 for normally open relay contact || 5 A DC-1 for normally open relay contact || 3 A DC-13 for normally open relay contact || 3 A AC-1 for normally closed relay contact || 1 A AC-15 for normally clo

Minimum Output Voltage:

12 V relay output

Electrical Circuit Type:

NC pair || PNP pair || antivalent pair || OSSD pair

Height:

100 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Product Or Component Type:

safety module

China Rohs Regulation:

X

Function Of Module:

emergency stop button with 2 NC contacts || guard monitoring with 1 or 2 limit switches || monitoring 2 PNP sensors || magnetic switch monitoring || light curtain monitoring || RFID switch || monitoring of electro-sensitive protection equipment (ESPE

[Us] Rated Supply Voltage:

48...240 V AC/DC - 10...10 %

Type Of Start:

automatic/manual/monitored

Rohs Exemption Information:

Yes

[Ui] Rated Insulation Voltage:

250 V 2)IEC 60947-1

Safety Reliability Data:

MTTFd > 30 years ISO 13849-1 || Dcavg >= 99 % ISO 13849-1 || PFHd = 1.61E-09 ISO 13849-1 || HFT = 1 IEC 62061 || PFHd = 1.61E-09 IEC 62061 || SFF > 99% IEC 62061 || HFT = 1 IEC 61508-1 || PFHd = 1.61E-09 IEC 61508-1 || SFF > 99% IEC 61508-1 || type =

Connections - Terminals:

removable screw terminal block, 0.2...2.5 mm² solid or flexible || removable screw terminal block, 0.25...2.5 mm² flexible with ferrule single conductor || removable screw terminal block, 0.2...1.5 mm² solid or flexible twin conductor || removable

Input Protection Type:

internal, electronic

Ip Degree Of Protection:

IP20 terminals)IEC 60529 || IP40 housing)IEC 60529 || IP54 mounting area)IEC 60529

Ambient Air Temperature For Operation:

-25-55 °C

Auxiliary Contact Composition:

2 NO + 1 NC

Range Of Product:

Harmony Safety Automation

Pvc Free:

Yes

Width:

22.5 mm

Depth:

120 mm

Input Compatibility:

normally closed circuit ISO 14119 || XC limit switch ISO 14119 || mechanical contact ISO 14119 || normally closed circuit ISO 13850 || antivalent pair ISO 14119 || OSSD pair IEC 61496-1-2 || 3-wire proximity sensors PNP

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Number Of Inputs:

2 safety input 24 V DC 5

Power Consumption In W:

3.0 W 48 V DC

Sustainable Offer Status:

Green Premium product

Input/Output Type:

semiconductor pulsed diagnostic output 24 V DC, 20 mA Z1, not safety-related
