Schneider Electric XVC1B3K Indicating Banks 100Mm Led Base Mount 24

Schneider Electric XVC1B3K Indicating Banks 100Mm Led Base Mount 24

Schneider Electric
SKU:
XVC1B3K
|
UPC:
3.60648E+12
$740.00
(No reviews yet) Write a Review
Condition:
New
Current Stock:
Description

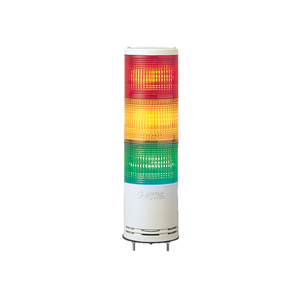

Complete pre wired monolithic tower light, Harmony XVC, plastic, red orange green, 100mm, base mounting, steady or flashing, IP54, 24V DC
Additional Information
Circularity Profile:
ENVEOLI1904008EN
Net Weight:
1.1 kg
China Rohs Regulation:
X
Product Mounting:
on base
[Uimp] Rated Impulse Withstand Voltage:
0.8 kV
Light Source:
LED steady or flashing red || LED steady or flashing orange || LED steady or flashing green
Ambient Air Temperature For Storage:
-35-70 °C
Current Consumption:
300 mA
Marking:
CE
[Us] Rated Supply Voltage:
24 V
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Warranty:
18 months
Ambient Air Temperature For Operation:
-30-50 °C
Product Certifications:
UL
Rohs Exemption Information:
Yes
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Cable Length:
500 mm
Mounting Diameter:
100 mm
Height:
372 mm
Sound Signalling:
without
Environmental Disclosure:
ENVPEP1904008EN
Ip Degree Of Protection:
IP54 IEC 60529
Component Name:
XVC
Protective Treatment:
TC
Awg Gauge:
AWG 18 || AWG 22
Electrical Shock Protection Class:
class II IEC 61140
Material:
polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94-V0): top cover
Product Or Component Type:
complete pre-wired monolithic tower light
Range Of Product:
Harmony XVC1
Beacon Or Indicator Bank Unit Type:
3 illuminated units
Mercury Free:
Yes
Standards:
IEC 61000-6-3 || IEC 61000-6-4 || IEC 61000-6-2
Supply Circuit Type:
DC
Flashing Frequency:
0.7-3 Hz
Cable Cross Section:
0.33-0.33 mm² || 0.83-0.83 mm²
Brochure:
View
Catalog:
View
Datasheet:
View
