Schneider Electric

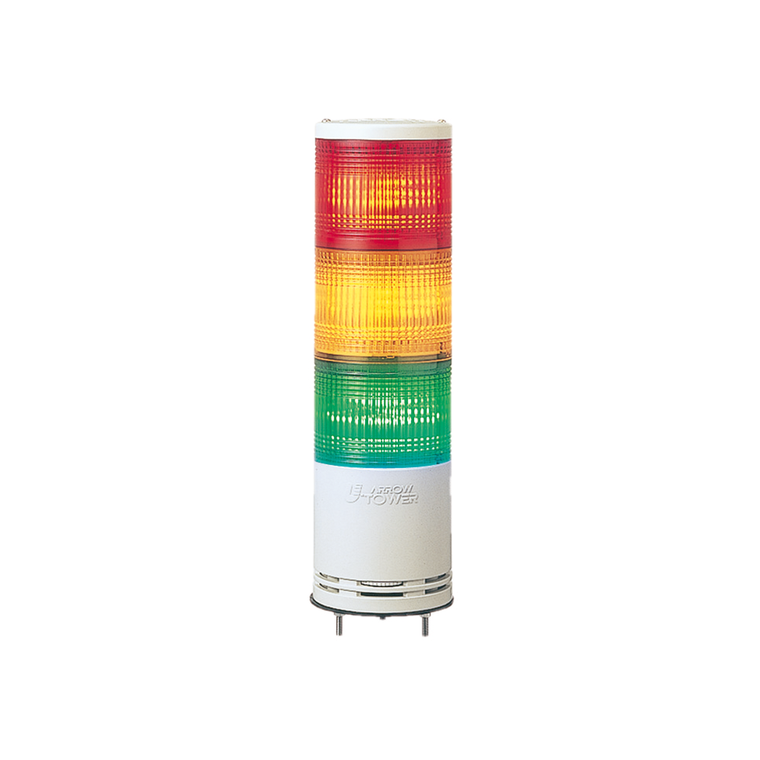

Schneider Electric XVC1B3SK Indicating Banks 100Mm Led Base Mount 24

SKU:

XVC1B3SK

UPC:

3.60648E+12

MPN:

Condition:

New

China Rohs Regulation:

X

Sound Signalling:

buzzer

[Uimp] Rated Impulse Withstand Voltage:

0.8 kV

Ambient Air Temperature For Storage:

-35-70 °C

Flashing Frequency:

0.7-3 Hz

[Us] Rated Supply Voltage:

24 V

Ambient Air Temperature For Operation:

-30-50 °C

Circularity Profile:

ENVEOLI1904008EN

Cable Length:

500 mm

Product Mounting:

on base

Awg Gauge:

AWG 18 || AWG 22

Beacon Or Indicator Bank Unit Type:

3 illuminated units

Mercury Free:

Yes

Warranty:

18 months

Environmental Disclosure:

ENVPEP1904008EN

Light Source:

LED steady or flashing red || LED steady or flashing orange || LED steady or flashing green

Supply Circuit Type:

DC

Standards:

IEC 61000-6-4 || IEC 61000-6-3 || IEC 61000-6-2

Component Name:

XVC

Mounting Diameter:

100 mm

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Ip Degree Of Protection:

IP54 IEC 60529

Rohs Exemption Information:

Yes

Product Certifications:

UL

Height:

372 mm

Material:

polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94-V0): top cover

Electrical Shock Protection Class:

class II IEC 61140

Cable Cross Section:

0.83-0.83 mm² || 0.33-0.33 mm²

Noise Level:

60-85 dB continuous or intermittent tone)1 m

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Current Consumption:

350 mA

Marking:

CE

Range Of Product:

Harmony XVC1

Protective Treatment:

TC

Product Or Component Type:

complete pre-wired monolithic tower light

Net Weight:

1.1 kg
