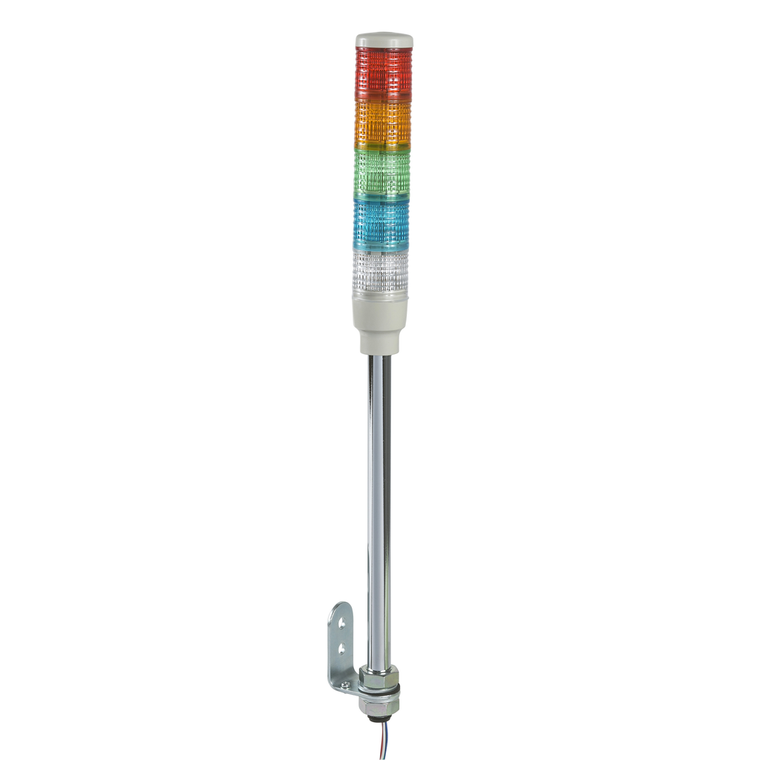

Schneider Electric XVC4B5 Indic. Banks 40Mm Led Pole Mount 24V Ste

(No reviews yet) Write a Review

Write a Review

Schneider Electric XVC4B5 Indic. Banks 40Mm Led Pole Mount 24V Ste

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XVC4B5

UPC:

3606480032417

MPN:

Condition:

New

Marking:

CE

Beacon Or Indicator Bank Unit Type:

5 illuminated units

Height:

543.5 mm

Current Consumption:

125 mA

Light Source:

LED steady red || LED steady orange || LED steady green || LED steady blue || LED steady clear

Material:

polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94HB): top cover || SGP (chromium-plated): support tube

Overvoltage Category:

class I IEC 61140

Product Mounting:

on support tube, 17 mm

Cable Length:

600 mm

Net Weight:

0.58 kg

Cable Cross Section:

0.33-0.33 mm²

[Us] Rated Supply Voltage:

24 V

Range Of Product:

Harmony XVC4

Device Short Name:

XVC

Ip Degree Of Protection:

IP23 vertical surface installation IEC 60529

Circularity Profile:

ENVEOLI1904008EN

Ambient Air Temperature For Storage:

-35-70 °C

Warranty:

18 months

Awg Gauge:

AWG 22

Protective Treatment:

TC

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Or Component Type:

complete pre-wired monolithic tower light

China Rohs Regulation:

X

Mounting Location:

on support tube, 17 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Supply Circuit Type:

AC/DC

Standards:

IEC 61000-6-2 || IEC 61000-6-3

[Uimp] Rated Impulse Withstand Voltage:

0.8 kV

Rohs Exemption Information:

Yes

Flashing Frequency:

1 Hz

Mounting Diameter:

40 mm

Ambient Air Temperature For Operation:

-10-50 °C

Environmental Disclosure:

ENVPEP1904008EN

Mercury Free:

Yes

Sound Signalling:

without

Electrical Shock Protection Class:

class I IEC 61140

Component Name:

XVC

Product Certifications:

UL

Brochure:

View

Catalog:

View

Datasheet:

View
