Schneider Electric

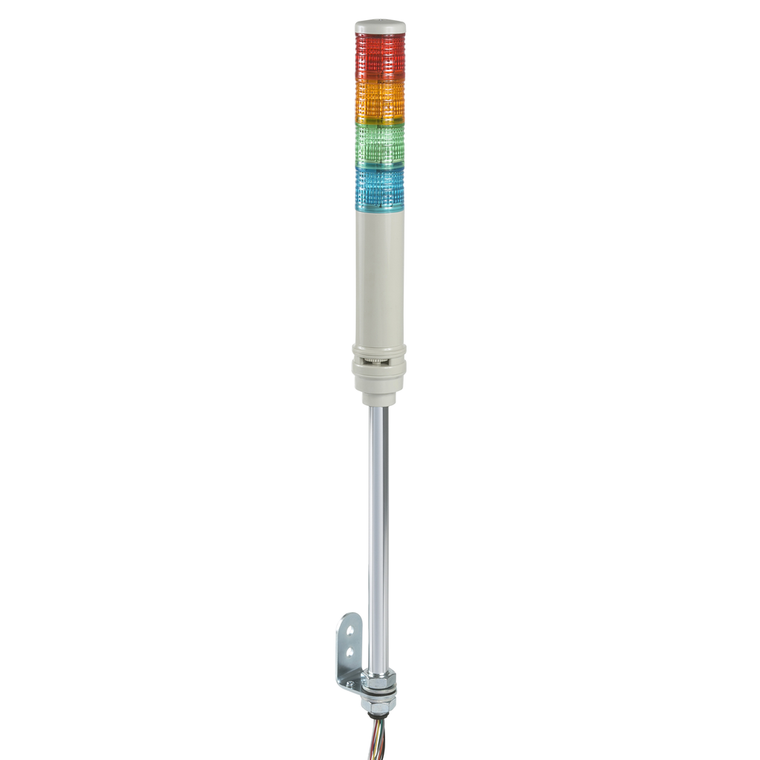

Schneider Electric XVC4M15S Tower Lights 40 Mm, Buzzer, Blinking, 10

SKU:

XVC4M15S

UPC:

3606480072857

MPN:

Condition:

New

Light Source:

LED steady or flashing red

[Us] Rated Supply Voltage:

100...240 V

Warranty:

18 months

Component Name:

XVC

Environmental Disclosure:

ENVPEP1904008EN

Overvoltage Category:

class I IEC 61140

Supply Circuit Type:

AC

Circularity Profile:

ENVEOLI1904008EN

Mounting Diameter:

40 mm

[Uimp] Rated Impulse Withstand Voltage:

4 kV

Ambient Air Temperature For Storage:

-35-70 °C

Material:

polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94-V0): top cover || SGP (chromium-plated): support tube

Product Certifications:

UL

Sound Signalling:

buzzer

Standards:

IEC 60947-1 || IEC 60947-5-1

Flashing Frequency:

1 Hz

Awg Gauge:

AWG 22 || AWG 18

China Rohs Regulation:

X

Ip Degree Of Protection:

IP23 vertical surface installation IEC 60529

Height:

567.2 mm

Rohs Exemption Information:

Yes

Product Or Component Type:

complete pre-wired monolithic tower light

Noise Level:

70-85 dB continuous or intermittent tone)1 m

Fundamental Frequency:

2.23 kHz

Product Mounting:

on support tube, 17 mm

Ambient Air Temperature For Operation:

-10-50 °C

Electrical Shock Protection Class:

class I IEC 61140

Cable Length:

450 mm

Cable Cross Section:

0.83-0.83 mm² || 0.33-0.33 mm²

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Device Short Name:

XVC

Range Of Product:

Harmony XVC4

Mercury Free:

Yes

Beacon Or Indicator Bank Unit Type:

1 illuminated unit

Protective Treatment:

TC

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Marking:

CE

Mounting Location:

on support tube, 17 mm

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Net Weight:

0.74 kg

Current Consumption:

50 mA
