Schneider Electric XVC6M15S Tower Lights 60 Mm, 100-240 V, Buzzer, B

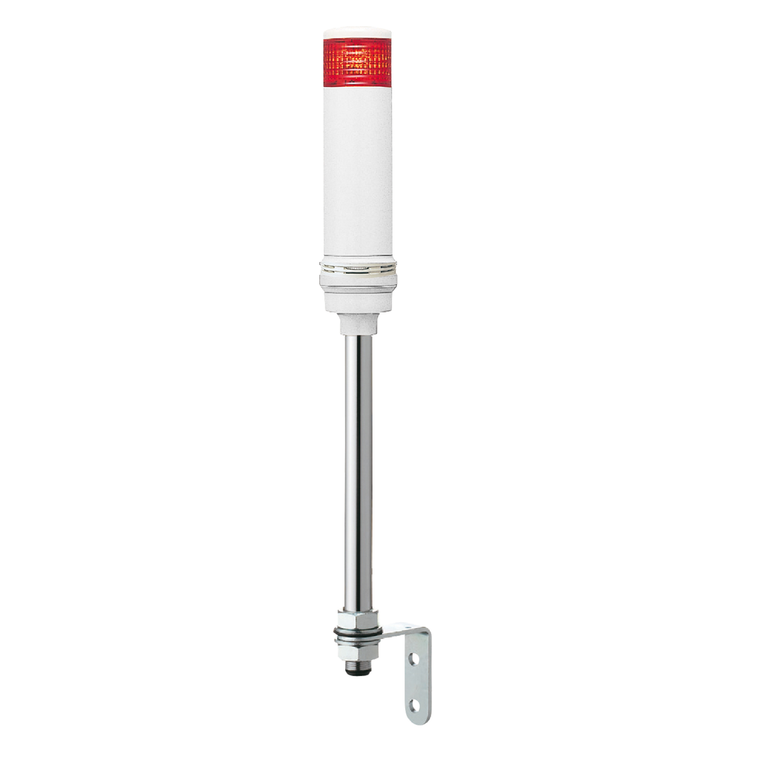

Complete pre wired monolithic tower light, Harmony XVC, plastic, red, 60mm, tube mounting, steady or flashing, buzzer, IP23, 100...240V AC
- Flashing Frequency:
- 1 Hz
- Standards:
- IEC 60947-1 || IEC 60947-5-1
- Supply Circuit Type:
- AC
- Component Name:
- XVC
- Cable Cross Section:
- 0.83-0.83 mm² || 0.33-0.33 mm²
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Marking:
- CE
- Ambient Air Temperature For Storage:
- -35-70 °C
- Rohs Exemption Information:
- Yes
- Mounting Diameter:
- 60 mm
- Range Of Product:
- Harmony XVC6
- Fundamental Frequency:
- 2.23 kHz
- Circularity Profile:
- ENVEOLI1904008EN
- China Rohs Regulation:
- X
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Ip Degree Of Protection:
- IP23 vertical surface installation IEC 60529
- [Us] Rated Supply Voltage:
- 100...240 V
- Cable Length:
- 450 mm
- Noise Level:
- 70-85 dB continuous or intermittent tone)1 m
- Awg Gauge:
- AWG 22 || AWG 18
- Electrical Shock Protection Class:
- class I IEC 61140
- [Uimp] Rated Impulse Withstand Voltage:
- 4 kV
- Current Consumption:
- 60 mA
- Ambient Air Temperature For Operation:
- -10-50 °C
- Beacon Or Indicator Bank Unit Type:
- 1 illuminated unit
- Weee:
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Light Source:
- LED steady or flashing red
- Environmental Disclosure:
- ENVPEP1904008EN
- Product Mounting:
- on support tube, 22 mm
- Net Weight:
- 1.01 kg
- Product Certifications:
- UL
- Warranty:
- 18 months
- Height:
- 599.8 mm
- Material:
- polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94-V0): top cover
- Mercury Free:
- Yes
- Product Or Component Type:
- complete pre-wired monolithic tower light
- Sound Signalling:
- buzzer
- Protective Treatment:
- TC
