Schneider Electric

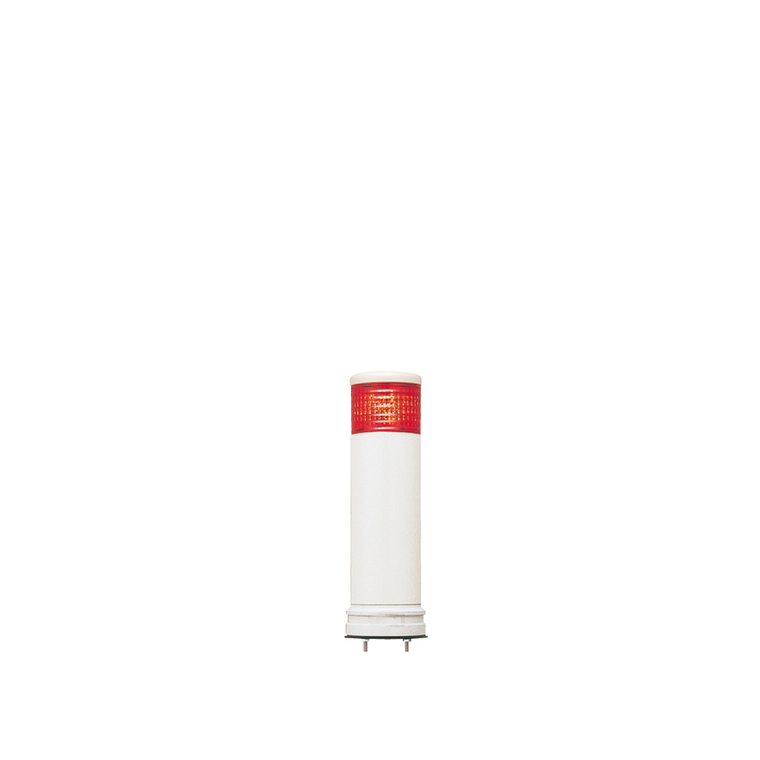

Schneider Electric XVC6M15SK Tower Lights 60 Mm, 100-240 V, Buzzer, B

SKU:

XVC6M15SK

UPC:

3606480072758

MPN:

Condition:

New

[Us] Rated Supply Voltage:

100...240 V

Cable Length:

750 mm || 850 mm

Protective Treatment:

TC

Ip Degree Of Protection:

IP54 flat surface installation IEC 60529

Electrical Shock Protection Class:

class I IEC 61140

Circularity Profile:

ENVEOLI1904008EN

Supply Circuit Type:

AC

Current Consumption:

60 mA

Noise Level:

70-85 dB continuous or intermittent tone)1 m

Sound Signalling:

buzzer

Height:

232 mm

Environmental Disclosure:

ENVPEP1904008EN

Net Weight:

0.49 kg

Product Mounting:

on base

Fundamental Frequency:

2.23 kHz

Light Source:

LED steady or flashing red

Range Of Product:

Harmony XVC6

[Uimp] Rated Impulse Withstand Voltage:

4 kV

Awg Gauge:

AWG 22 || AWG 18

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Ambient Air Temperature For Storage:

-35-70 °C

Warranty:

18 months

Rohs Exemption Information:

Yes

Mounting Diameter:

60 mm

Marking:

CE

Product Or Component Type:

complete pre-wired monolithic tower light

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Standards:

IEC 60947-1 || IEC 60947-5-1

China Rohs Regulation:

X

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Flashing Frequency:

1 Hz

Ambient Air Temperature For Operation:

-10-50 °C

Material:

polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94-V0): top cover

Cable Cross Section:

0.33-0.33 mm² || 0.83-0.83 mm²

Product Certifications:

UL

Mercury Free:

Yes

Component Name:

XVC

Beacon Or Indicator Bank Unit Type:

1 illuminated unit

Brochure:

View

Catalog:

View

Datasheet:

View
