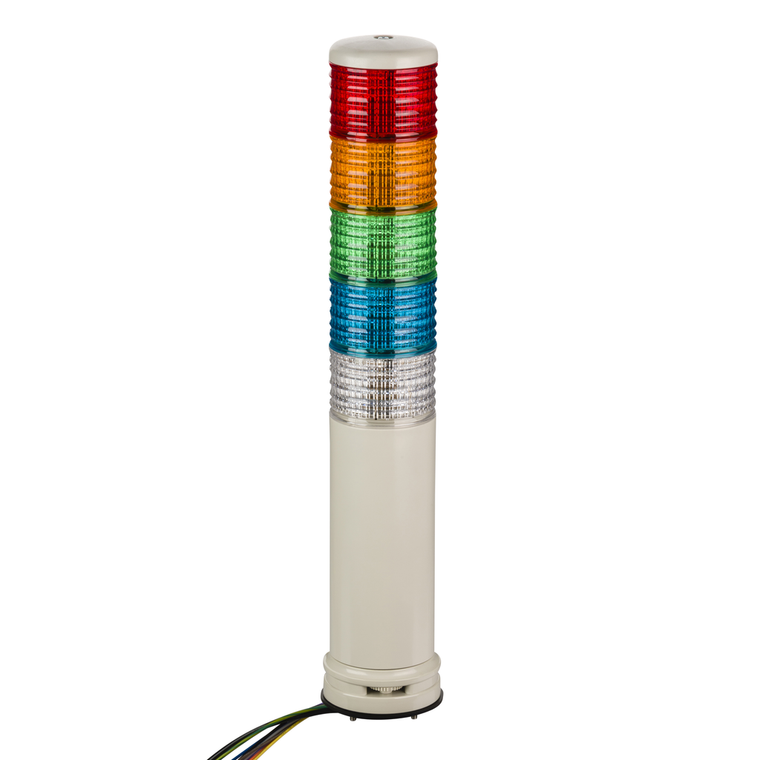

Schneider Electric XVC6M55SK Tower Lights 60Mm, 100-240 V, Buzzer, Bl

(No reviews yet) Write a Review

Write a Review

Schneider Electric XVC6M55SK Tower Lights 60Mm, 100-240 V, Buzzer, Bl

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name

Email Required

Review Subject Required

Comments Required

SKU:

XVC6M55SK

UPC:

3606480072796

MPN:

Condition:

New

Fundamental Frequency:

2.23 kHz

Net Weight:

0.71 kg

Cable Cross Section:

0.83-0.83 mm² || 0.33-0.33 mm²

Supply Circuit Type:

AC

[Us] Rated Supply Voltage:

100...240 V

Circularity Profile:

ENVEOLI1904008EN

Height:

392 mm

Light Source:

LED steady or flashing red || LED steady or flashing orange || LED steady or flashing green || LED steady or flashing blue || LED steady or flashing clear

Component Name:

XVC

Material:

polycarbonate: illuminated unit || ABS (acrylonitrile butadiene-styrene): base unit || PBT + ABS (UL94-V0): top cover

Standards:

EN/IEC 60947-1 || EN/IEC 60947-5-1

China Rohs Regulation:

X

Environmental Disclosure:

ENVPEP1904008EN

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Product Mounting:

on base

Mounting Diameter:

60 mm

[Uimp] Rated Impulse Withstand Voltage:

4 kV

Cable Length:

850 mm || 750 mm

Marking:

CE

Warranty:

18 months

Awg Gauge:

AWG 22 || AWG 18

Electrical Shock Protection Class:

class I EN/IEC 61140

Ambient Air Temperature For Storage:

-35-70 °C

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Current Consumption:

115 mA

Noise Level:

70-85 dB continuous or intermittent tone)1 m

Sound Signalling:

buzzer

Ip Degree Of Protection:

IP54 flat surface installation EN/IEC 60529

Range Of Product:

Harmony XVC6

Product Or Component Type:

complete pre-wired monolithic tower light

Mercury Free:

Yes

Product Certifications:

UL

Flashing Frequency:

1 Hz

Weee:

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.

Ambient Air Temperature For Operation:

-10-50 °C

Beacon Or Indicator Bank Unit Type:

5 illuminated units

Protective Treatment:

TC

Rohs Exemption Information:

Yes

Brochure:

View

Catalog:

View

Datasheet:

View
