Schneider Electric

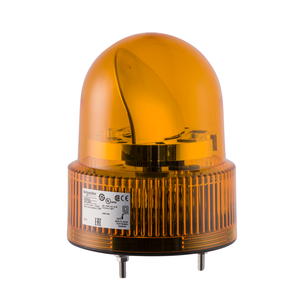

Schneider Electric XVR12B05 Rotating Mirror Beacon Led 120 Mm 24 V O

SKU:

XVR12B05

UPC:

3606480033162

MPN:

Condition:

New

Product Or Component Type:

prewired rotating mirror beacon

Net Weight:

0.5 kg

Sustainable Offer Status:

Green Premium product

China Rohs Regulation:

X

Standards:

IEC 61000-6-2 || IEC 61000-6-4

Clamping Connection Capacity:

0.83 mm²

Device Short Name:

XVR

Electrical Shock Protection Class:

class II IEC 61140

Range Of Product:

Harmony XVR

Light Source:

high luminosity LED, orange

[Us] Rated Supply Voltage:

24 V AC/DC

Cable Length:

400 mm

Awg Gauge:

AWG 18

Marking:

CE

Sound Signalling:

without

Flashing Frequency:

2.3 Hz

Ip Degree Of Protection:

IP23 IEC 60529

Circularity Profile:

ENVEOLI1402018EN

Protective Treatment:

TC

Environmental Disclosure:

ENVPEP1402018EN

Ambient Air Temperature For Operation:

-10-50 °C

Reach Regulation:

Reference contains Substances of Very High Concern above the threshold

Warranty:

18 months

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Current Consumption:

125 mA

Mounting Diameter:

120 mm

Ambient Air Temperature For Storage:

-35-70 °C

[Uimp] Rated Impulse Withstand Voltage:

0.8 kV

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Cad Overall Depth:

120 mm

Cad Overall Width:

120 mm

Material:

ABS (acrylonitrile butadiene-styrene): body part || AS: globe

Product Mounting:

by 3 M5 screws

Rohs Exemption Information:

Yes

Supply Voltage Limits:

19-30 V DC || 21.6-26.4 V AC

Brochure:

View

Catalog:

View

Datasheet:

View
