Schneider Electric

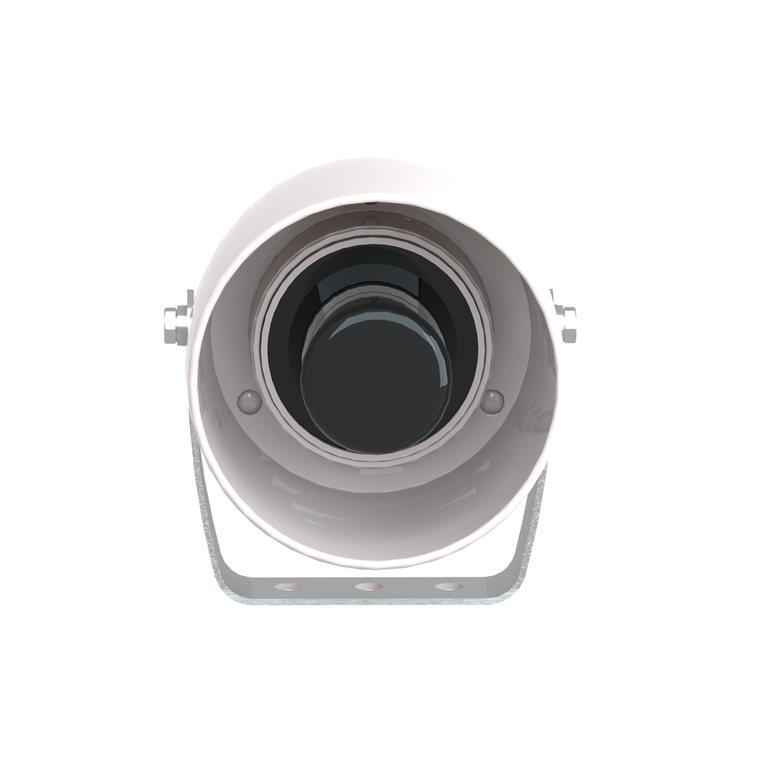

Schneider Electric XVS10BMW Siren,12-24V Acdc,2Tones,White,No Cable Pack of 8

SKU:

XVS10BMW

UPC:

3389119045346

MPN:

Condition:

New

Warranty:

18 months

Clamping Connection Capacity:

<= 1 x 1.5 mm²

Circularity Profile:

ENVEOLI1411024EN

Ambient Air Temperature For Storage:

-35-70 °C

Ip Degree Of Protection:

IP53

Signalling Type:

2 tones siren

Current Consumption:

300 mA 24 V || 500 mA

Mercury Free:

Yes

Product Or Component Type:

siren

Color:

White

Net Weight:

0.8 kg

Protective Treatment:

TC

Ambient Air Temperature For Operation:

-30-50 °C

[Us] Rated Supply Voltage:

12 V AC/DC || 24 V AC/DC

Environmental Disclosure:

ENVPEP1411024EN

Rohs Exemption Information:

Yes

Range Of Product:

Harmony XVS

China Rohs Regulation:

X

Height:

114 mm

Device Short Name:

XVS

Electrical Connection:

cable 6.5-8.5 mm

Depth:

153.2 mm

Noise Level:

106-106 dB continuous or intermittent tone)1 m

Standards:

EN/IEC 60947-1 || EN/IEC 60947-5-1

Material:

PC: body

Width:

114 mm

California Proposition 65:

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

[Uimp] Rated Impulse Withstand Voltage:

0.8 kV

Electrical Shock Protection Class:

class II EN/IEC 61140

Marking:

CE

Eu Rohs Directive:

Pro-active compliance (Product out of EU RoHS legal scope)

Catalog:

View

Datasheet:

View
