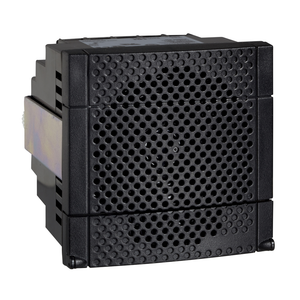

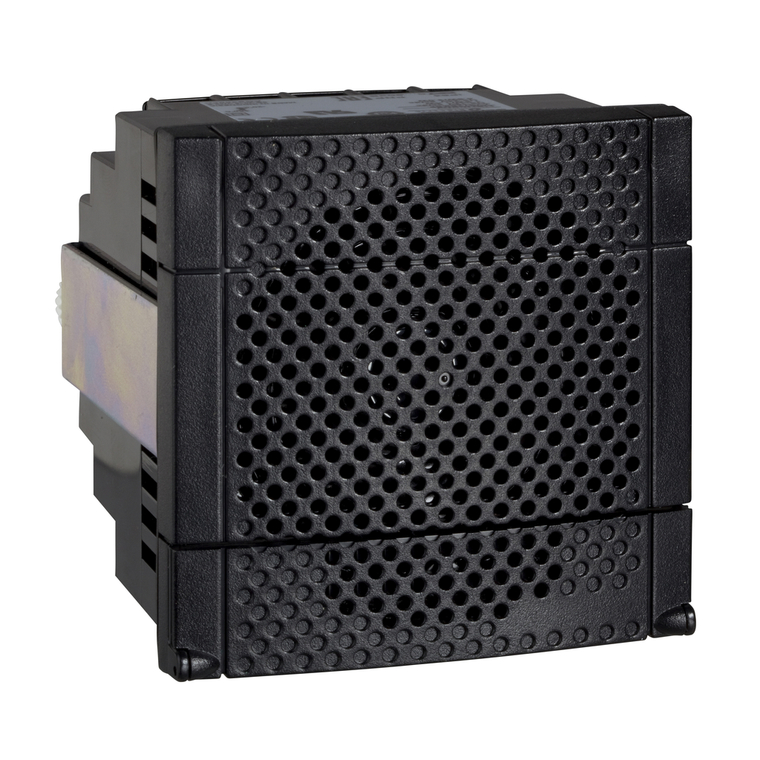

Schneider Electric XVS72BMBN Din72 Panel Mount Multi Sound Electronic

Schneider Electric XVS72BMBN Din72 Panel Mount Multi Sound Electronic

Schneider Electric
SKU:
XVS72BMBN
|
UPC:
3.60648E+12
$180.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description
This black electronic alarm is part of the range of multi sound sirens and alarms Harmony XVS. This multisound alarm provides 16 tones and is supplied pre-cabled. It can be supplied with 12V to 24V AC/DC and features NPN output type. It allows imple integration with your applications featuring a compact body that’s 20% thinner than the competition. Its protection index is IP54. It weighs 180g. It provides PC (polycarbonate) terminal cover and ABS (acrylonitrile butadiene-styrene) body part. It is designed for long distance signaling applications, used mainly on conveyor belts, automated industrial trucks and on the doors of electrical control panels. It is CE, UL and CSA certified. It can be mounted on 72mm DIN rail.
Additional Information
[Us] Rated Supply Voltage:
12...24 V DC
Width:
72 mm
Ip Degree Of Protection:
panel mounted IP54 IEC 60529
Product Or Component Type:
electronic alarm
Range Of Product:
Harmony XVS
Depth:
69.3 mm
[Uimp] Rated Impulse Withstand Voltage:
0.8 kV
Warranty:
18 months
Signalling Type:
16 tones alarm
Ambient Air Temperature For Storage:
-35-70 °C
Environmental Disclosure:
ENVPEP1311010EN
Marking:
CE
Mercury Free:
Yes
Overvoltage Category:
class II IEC 61140
Rohs Exemption Information:
Yes
Noise Level:
0-90 dB continuous or intermittent tone)1 m
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Clamping Connection Capacity:
<= 1 x 1.5 mm²
Product Certifications:
UR
Color:
Black
Mounting Support:
72 mm DIN rail
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Standards:
UL 464 || IEC 61000-6-3 || IEC 61000-6-2
Material:
ABS (acrylonitrile butadiene-styrene): body || PC (polycarbonate): terminal cover
Device Short Name:
XVS
Circularity Profile:
ENVEOLI1311010EN
Ambient Air Temperature For Operation:
-10-50 °C
Sustainable Offer Status:
Green Premium product
Current Consumption:
117 mA 12 V || 125 mA 24 V || 158 mA 12 V || 200 mA 24 V
China Rohs Regulation:
X
Net Weight:
0.18 kg
Discrete Output Type:
NPN
Protective Treatment:
TC
Height:
72 mm
