Schneider Electric XVUC21M Xvu Body (Ac)Npn, Black

Schneider Electric XVUC21M Xvu Body (Ac)Npn, Black

Schneider Electric
SKU:
XVUC21M
|
UPC:
3606480555930
Availability:
Contact us to confirm availability and lead times.
$50.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

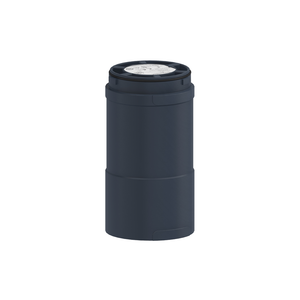

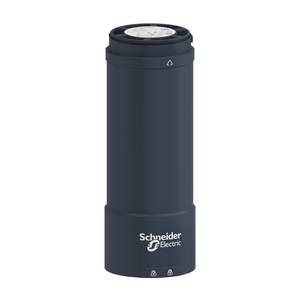

This Harmony XVU black base unit with top cover is supplied with 100-240V AC and has a diameter of 60mm. This black base unit with top cover is designed to be fitted with indicator bank to create complete tower light and allow clear display of the status of your machines. It it is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. Simple and modular design to allow for easy installation with illuminated unit via tube fixing and make complete tower light. It complies with international standards and certifications (CCC, CSA, UL, RoHS, EAC, CE standards).
Additional Information
Assembly Style:
customer assembly, up to 5 units
Current Consumption:
<= 400 mA
Environmental Disclosure:
ENVPEP1403004EN
Sustainable Offer Status:
Green Premium product
Ambient Air Temperature For Storage:
-20-65 °C
Product Or Component Type:
modular tower light
Ambient Air Temperature For Operation:
0-50 °C
Electrical Shock Protection Class:
class II on base unit IEC 61140
Ip Degree Of Protection:
IP65
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Fixing Mode:
direct or tube fixing
Product Certifications:
UL || CSA || CE || CCC
Component Name:
XVU
Net Weight:
0.235 kg
China Rohs Regulation:
X
Rohs Exemption Information:
Yes
Range Of Product:
Harmony XVU
[Us] Rated Supply Voltage:
100...240 V AC +/- 10 %
Kit Composition:
base unit NPN) || cover
Beacon Or Indicator Bank Unit Type:
base unit
Length:
151 mm
Mercury Free:
Yes
Mounting Diameter:
60 mm
Housing Colour:
black
Circularity Profile:
ENVEOLI1403004EN
Material:
PBT (polybutylene terephthalate) V-0 UL 94 || ABS (acrylonitrile butadiene-styrene) V-0 UL 94 || PC (polycarbonate) V-0 UL 94
Vibration Resistance:
2 gn
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Brochure:
View
Catalog:
View
Datasheet:
View
