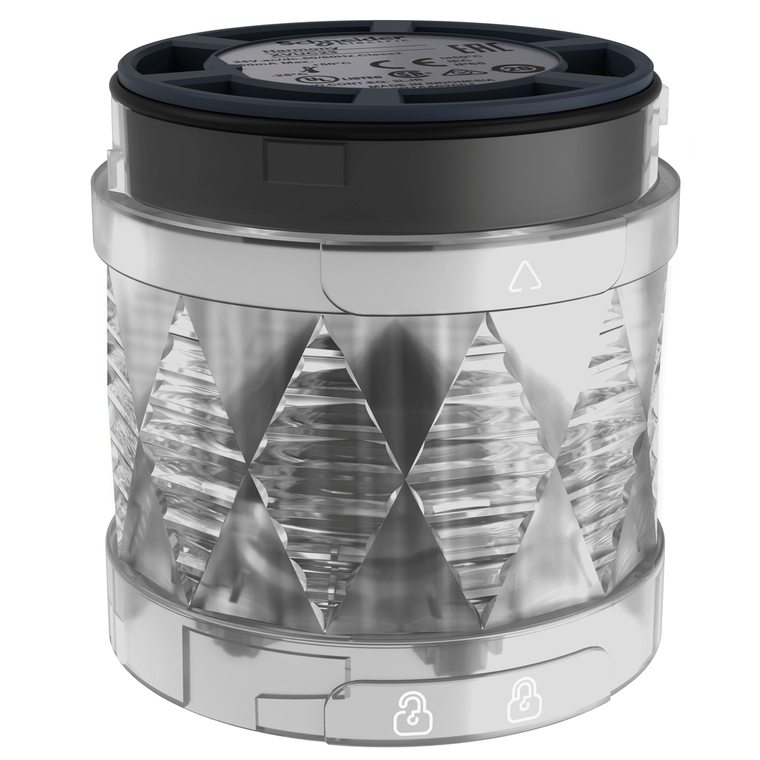

Schneider Electric XVUC27 Xvu White Led Unit
Schneider Electric
$34.00
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
This white illuminated unit is designed as an accessory to be connected with base and create complete tower light. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. Its integral LED offers a steady light, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
- Component Name:
- XVU
- Mounting Diameter:
- 60 mm
- Circularity Profile:
- ENVEOLI1403004EN
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ip Degree Of Protection:
- IP65
- [Us] Rated Supply Voltage:
- 24 V AC/DC
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Maximum Power Dissipation In W:
- 2.5 W
- China Rohs Regulation:
- X
- Net Weight:
- 0.064 kg
- Range Of Product:
- Harmony XVU
- Assembly Style:
- customer assembly, up to 5 units || up to 4 units with buzzer
- Ambient Air Temperature For Operation:
- -25-50 °C
- Device Application:
- packaging machine || automotive || machine tools
- Signalling Type:
- steady
- Length:
- 50 mm
- Beacon Or Indicator Bank Unit Type:
- LED unit
- Product Or Component Type:
- modular tower light
- Mercury Free:
- Yes
- Rohs Exemption Information:
- Yes
- Product Certifications:
- UL || CSA || CE
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Current Consumption:
- <= 50 mA
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Sustainable Offer Status:
- Green Premium product
- Material:
- PC (polycarbonate) V-2 UL 94 || PC (polycarbonate) V-0 UL 94
- Environmental Disclosure:
- ENVPEP1403004EN
- Vibration Resistance:
- 2 gn
- Light Source:
- LED, white
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
