Schneider Electric XVUC29 Xvu Multi-Color Unit

Schneider Electric XVUC29 Xvu Multi-Color Unit

Schneider Electric
SKU:
XVUC29
|
UPC:
3606480555862
Availability:
Contact us to confirm availability and lead times.
$75.00
Condition:
New
$1200 Minimum Order for Non-stock Items or $60 Addl Schneider Handling Fee Applies
Current Stock:
Description

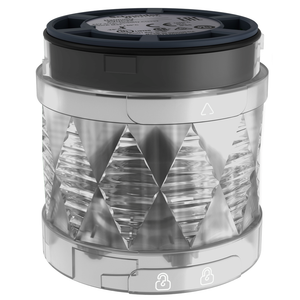

This multi-color illuminated unit is designed as an accessory to be connected with base and create complete tower light. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. Its integral LED offers a flashing light pattern, allowing it to clearly display the status of your machines. In applications such as automotive, machine tool, material handling, packaging, assembly stations, conveyors. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65. It makes it ideal for operation in harsh environments.
Additional Information
Reach Regulation:
Reference contains Substances of Very High Concern above the threshold
Signalling Type:
steady || rotating || flashing || blinking
Maximum Power Dissipation In W:
1.5 W
Assembly Style:
up to 4 units with buzzer || customer assembly, up to 5 units
California Proposition 65:
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Ambient Air Temperature For Storage:
-40-70 °C
Light Source:
LED, multi-colour
[Us] Rated Supply Voltage:
24 V AC/DC
Ip Degree Of Protection:
IP65
Sustainable Offer Status:
Green Premium product
Current Consumption:
<= 70 mA
China Rohs Regulation:
X
Device Application:
automotive || packaging machine || machine tools
Signalling Type:
steady/blinking/flashing/rotating
Light Source Colour:
green || yellow || white || blue || amber || red
Product Or Component Type:
modular tower light
Product Certifications:
CE || CSA || UL
Length:
50 mm
Environmental Disclosure:
ENVPEP1403004EN
Ambient Air Temperature For Operation:
-25-50 °C
Flashing Frequency:
1 Hz blinking || 0.23 Hz slow flashing || 7.26 Hz fast flashing || 2.33 Hz slow rotating || 3.3 Hz fast rotating
Beacon Or Indicator Bank Unit Type:
LED unit
Vibration Resistance:
2 gn
Range Of Product:
Harmony XVU
Material:
PC (polycarbonate) V-2 UL 94 || PC (polycarbonate) V-0 UL 94
Rohs Exemption Information:
Yes
Component Name:
XVU
Mercury Free:
Yes
Circularity Profile:
ENVEOLI1403004EN
Eu Rohs Directive:
Pro-active compliance (Product out of EU RoHS legal scope)
Net Weight:
0.064 kg
Mounting Diameter:
60 mm
