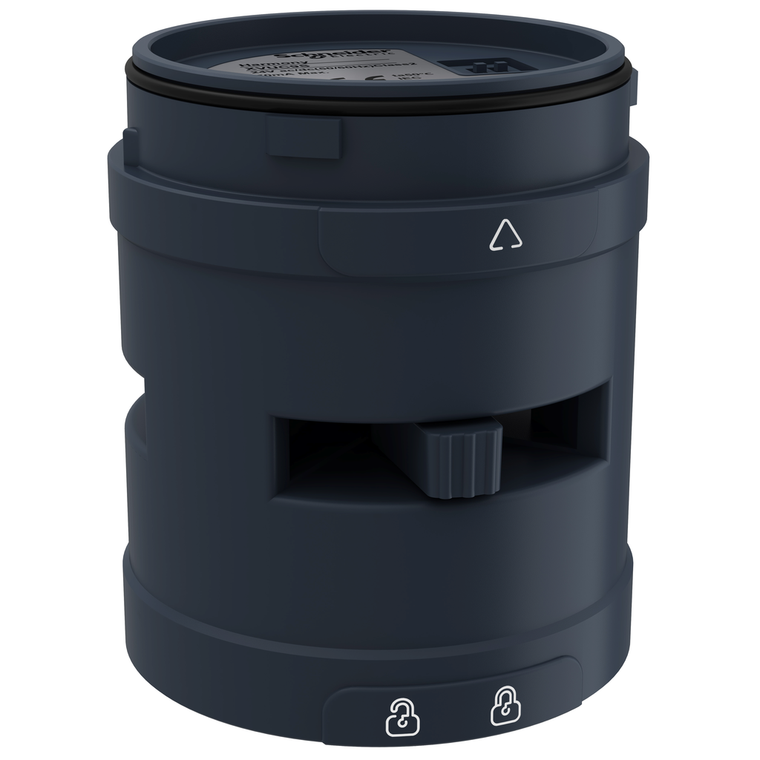

Schneider Electric XVUC9S Xvu Buzzer Unit, Black
Schneider Electric
$45.00
(No reviews yet)
Write a Review
Write a Review
Schneider Electric
Schneider Electric XVUC9S Xvu Buzzer Unit, Black
This indicating bank buzzer is an accessory designed as an audible and signalling unit. It is supplied with 24V AC/DC and has a mounting diameter of 60mm. It fits for modular tower light for custom assembly. It has a continuous or intermittentt signal and its sound acoustic level is adjustable. It complies with CSA, UL, RoHS, CE standards and it has IP54 protection index.
- Ip Degree Of Protection:
- IP54
- Localisation On Device:
- top
- Signalling Type:
- continuous or intermittent buzzer
- California Proposition 65:
- WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
- Component Name:
- XVU
- Mercury Free:
- Yes
- Net Weight:
- 0.077 kg
- Reach Regulation:
- Reference contains Substances of Very High Concern above the threshold
- Eu Rohs Directive:
- Pro-active compliance (Product out of EU RoHS legal scope)
- Assembly Style:
- customer assembly
- Length:
- 58 mm
- Material:
- PBT (polybutylene terephthalate) V-0 UL 94 || ABS (acrylonitrile butadiene-styrene) V-0 UL 94 || PC (polycarbonate) V-0 UL 94
- Current Consumption:
- <= 70 mA
- Rohs Exemption Information:
- Yes
- Beacon Or Indicator Bank Unit Type:
- buzzer unit
- Maximum Power Dissipation In W:
- 1.7 W
- Ambient Air Temperature For Storage:
- -40-70 °C
- Ambient Air Temperature For Operation:
- -25-50 °C
- Sound Frequency:
- 2635 Hz
- China Rohs Regulation:
- X
- Housing Colour:
- black
- Sustainable Offer Status:
- Green Premium product
- Range Of Product:
- Harmony XVU
- Product Or Component Type:
- modular tower light
- Environmental Disclosure:
- ENVPEP1403004EN
- Mounting Diameter:
- 60 mm
- Product Certifications:
- UL || CE || CSA
- Circularity Profile:
- ENVEOLI1403004EN
- [Us] Rated Supply Voltage:
- 24 V AC/DC
- Acoustic Level:
- 85 dB 1 m
- Brochure:
- View
- Catalog:
- View
- Datasheet:
- View
